Home >> Lexus >> 2008 >> LX 570 >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Theft Deterrent / Keyless Entry >> Certification Ecu >> Components

Certification Ecu: Components

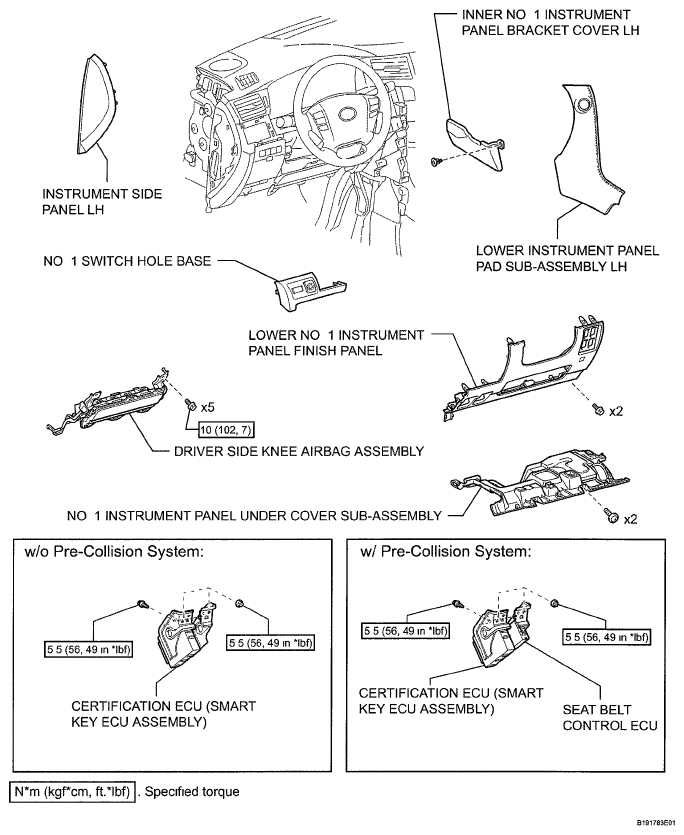

Fig 1: Certification ECU Replacement Components With Torque Specifications

G05763947

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
