Rear Door Lock: Components

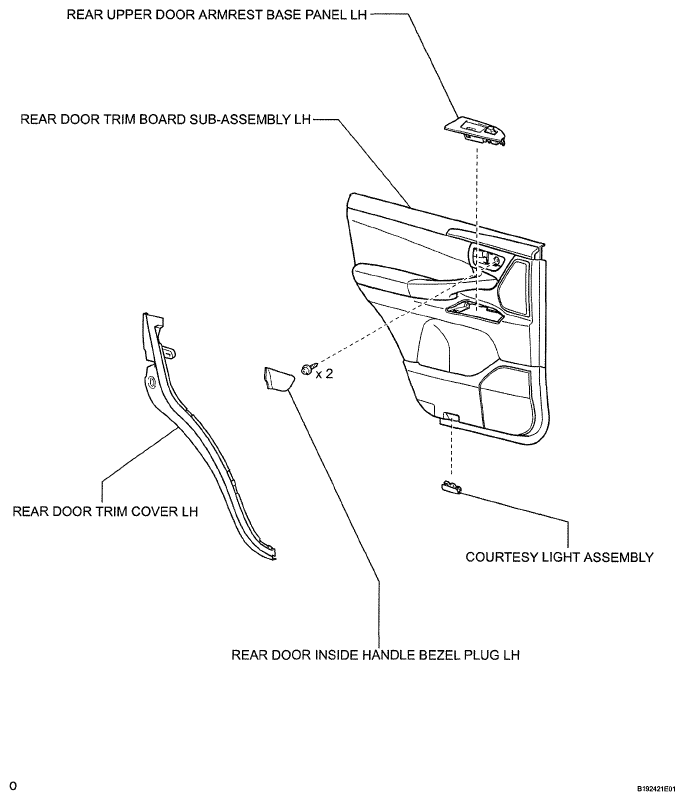

Fig 1: Identifying Rear Door Lock Replacement Components (1 Of 2)
G05765356Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

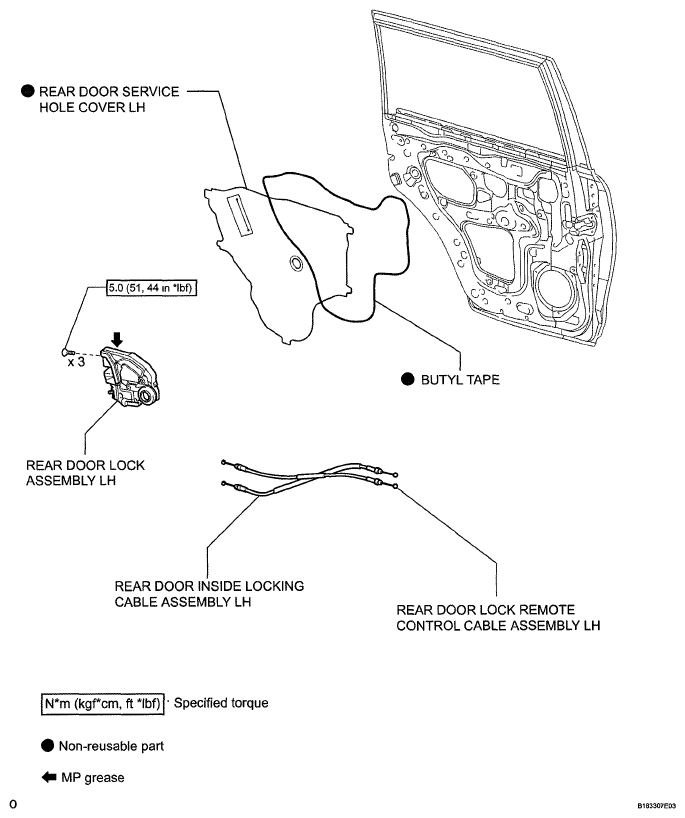

Fig 2: Identifying Rear Door Lock Replacement Components And Torque Specifications (2 Of 2)
G05765357Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
