System Diagram

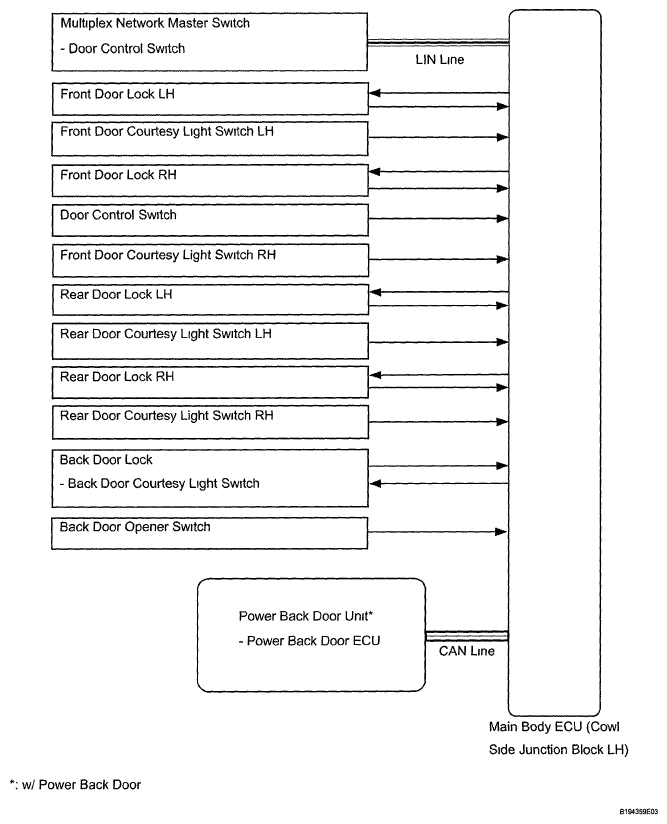

Fig 1: Power Door Lock Control System - System Diagram
G05765249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Communication Table

COMMUNICATION CHART

Sender Receiver Signal Line
Master Switch Main Body ECU Driver side door manual lock switch signal LIN
