Home >> Lexus >> 2008 >> LX 570 >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Door Lock >> Door Control Receiver >> Components

Door Control Receiver: Components

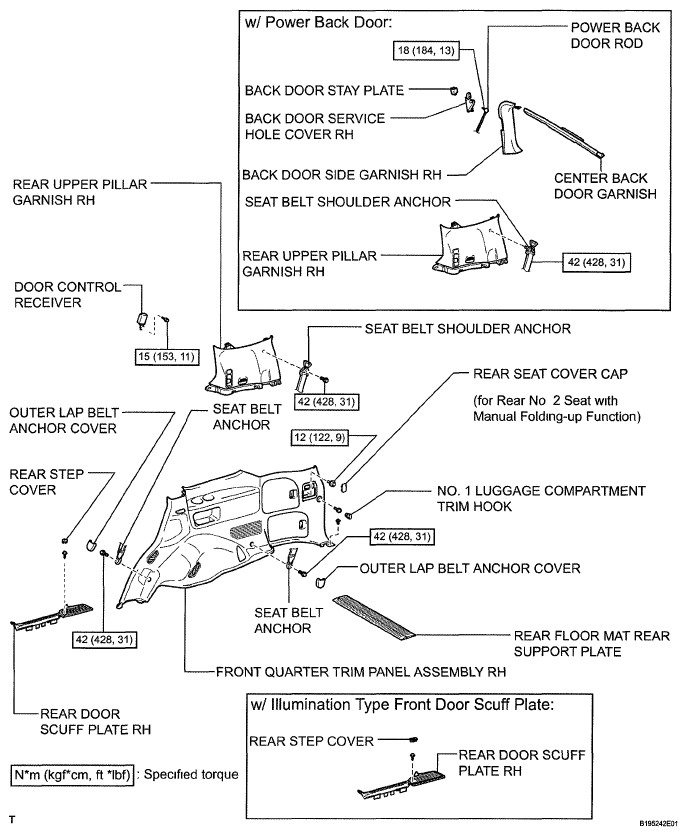

Fig 1: Identifying Door Control Receiver Replacement Components And Torque Specifications

G05765376

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
