Repair and Diagnosis
>>
Accessories & Equipment
>>
Infotainment
>>
Navigation
>>
Navigation System
>>
System Diagram
System Diagram

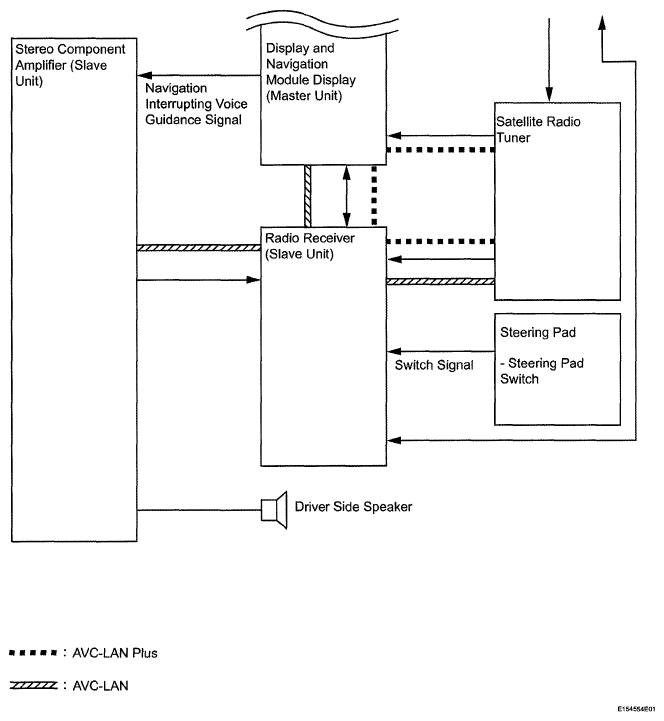

Fig 1: Navigation System Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

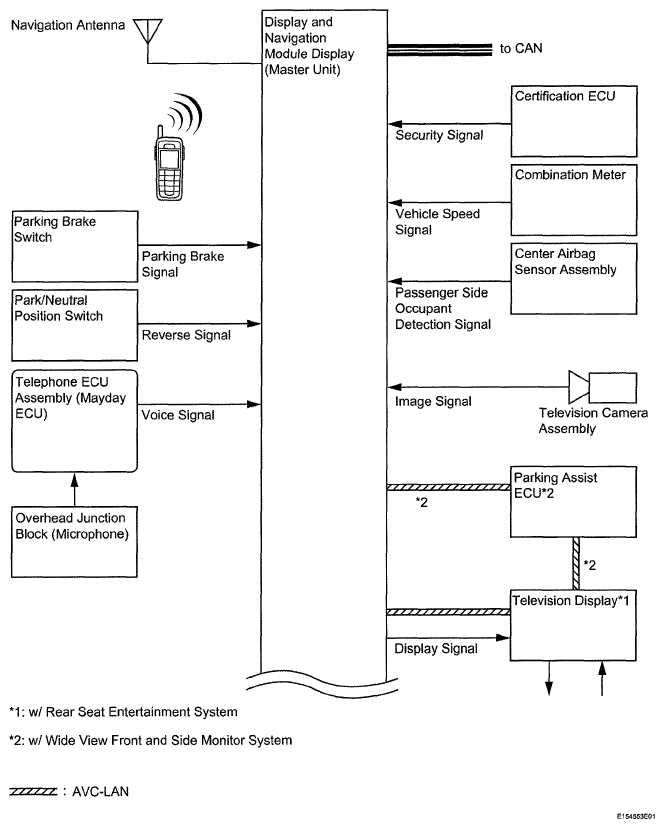

Fig 2: Navigation System Diagram (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
