Television Display: Installation

INSTALL TELEVISION DISPLAY BRACKET
1. Install the bracket with the 4 nuts.
INSTALL SLIDING ROOF HOUSING SUB-ASSEMBLY
1. Install the sliding roof housing (See INSTALLATION ).
INSTALL TELEVISION DISPLAY ASSEMBLY

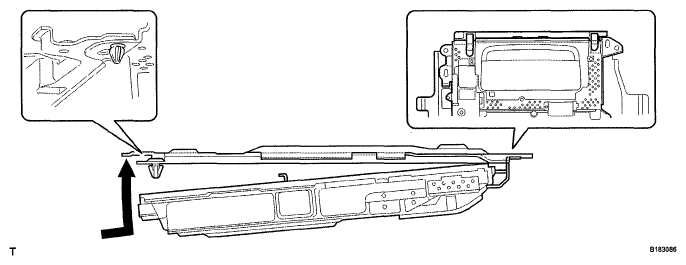

1. Attach the display to the claws on the front side of the bracket by moving it in the direction of the arrow in the illustration, and then attach the clips to temporarily install the display.

  Fig 2: Identifying Television Display Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the television display with the 5 bolts.
  HINT:

  Install the bolts in the order shown in the illustration.
3. Connect the connectors.
INSTALL ROOF CONSOLE BOX ASSEMBLY
1. Connect the connector.

  Fig 3: Identifying Television Display Bolts Install Order
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Attach the 4 clips and 2 claws to install the roof console box.
3. Install the 2 bolts.

  Fig 4: Identifying Roof Console Box Clips And Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 2 ROOF LINING TRIM COVER
1. Attach the 4 claws to install the cover.

  Fig 5: Identifying No. 2 Roof Lining Trim Cover Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 1 ROOF LINING TRIM COVER
1. Attach the 4 claws to install the cover.
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE: When disconnecting the cable, some systems need to be initialized after the cable is reconnected (See INITIALIZATION ).
INSTALL ENGINE ROOM SIDE COVER LH (See INSTALLATION )
