MULTI-DISPLAY (w/o Navigation System): Components

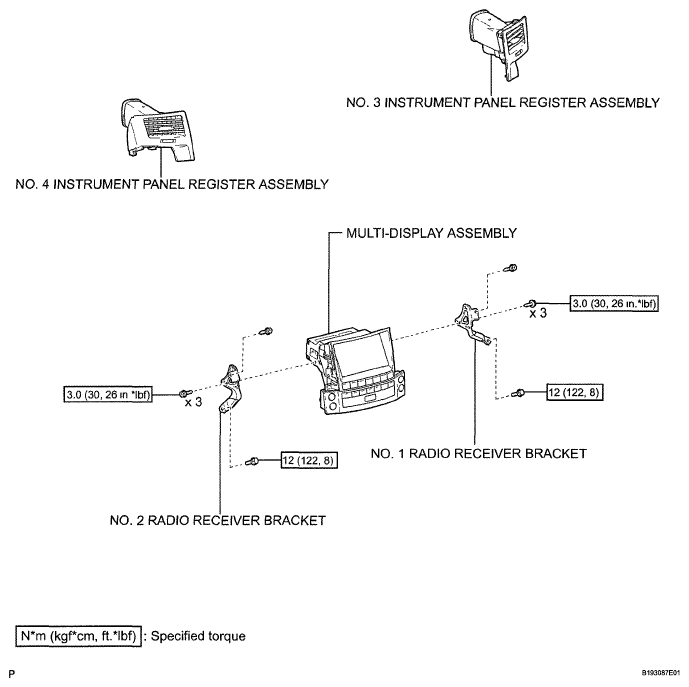

Fig 1: Multi-Display Replacement Components With Torque Specifications (w/o Navigation System)

G05763053

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
