Parts Location — 2008 Lexus LX 570 Service Manual ~ LEMON Manuals

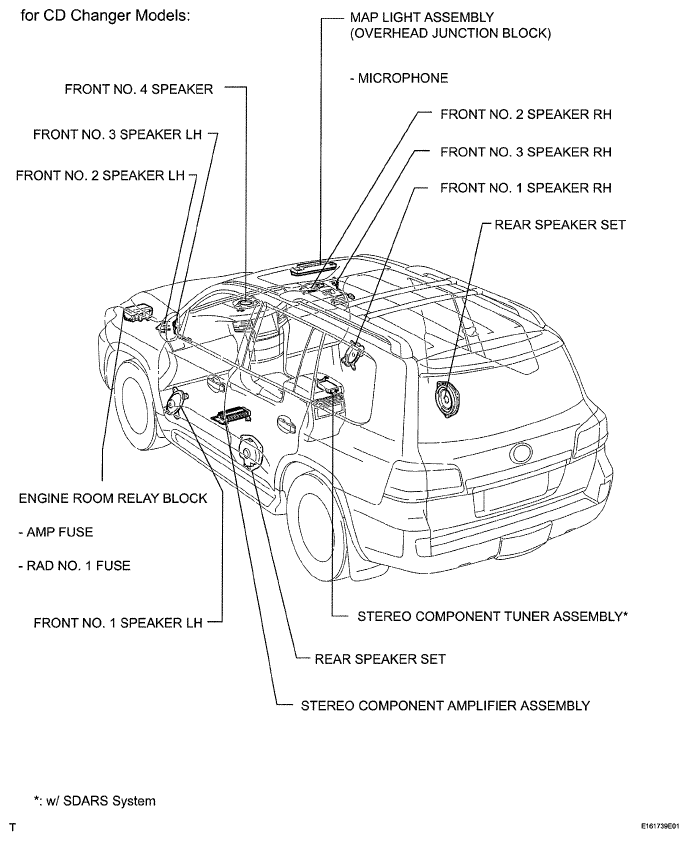

Fig 1: Identifying Audio And Visual System Parts Location (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

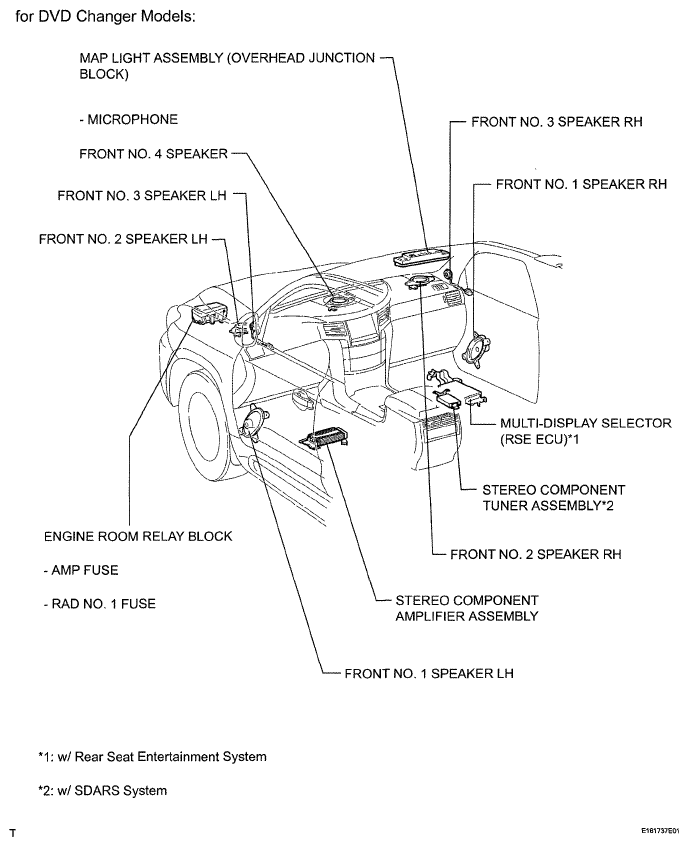

Fig 2: Identifying Audio And Visual System Parts Location (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

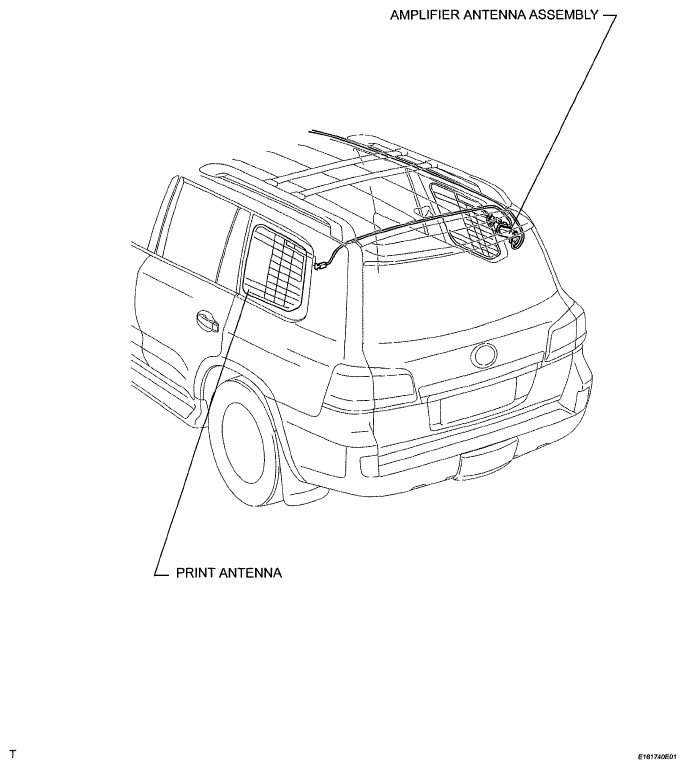

Fig 3: Identifying Audio And Visual System Parts Location (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

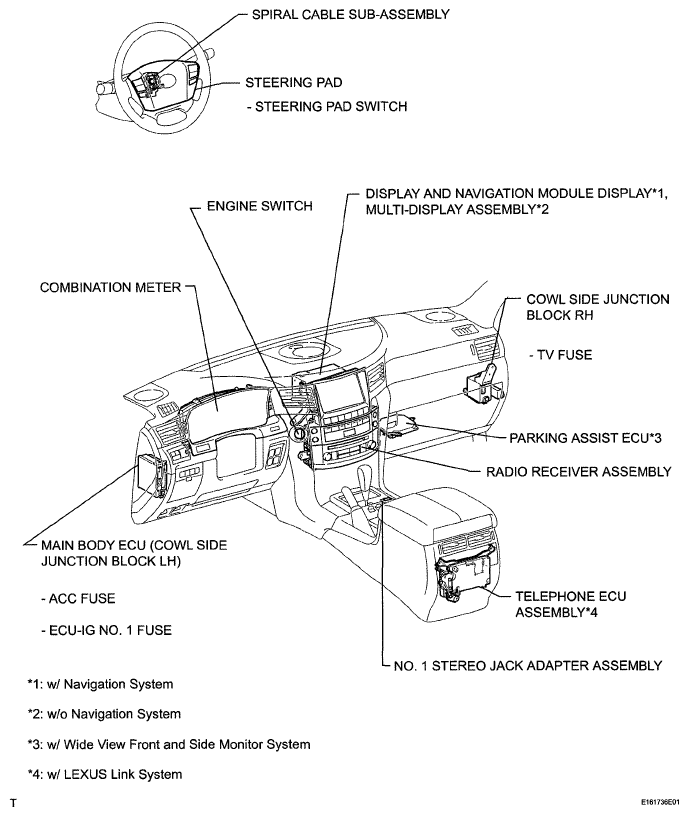

Fig 4: Identifying Audio And Visual System Parts Location (4 Of 5)

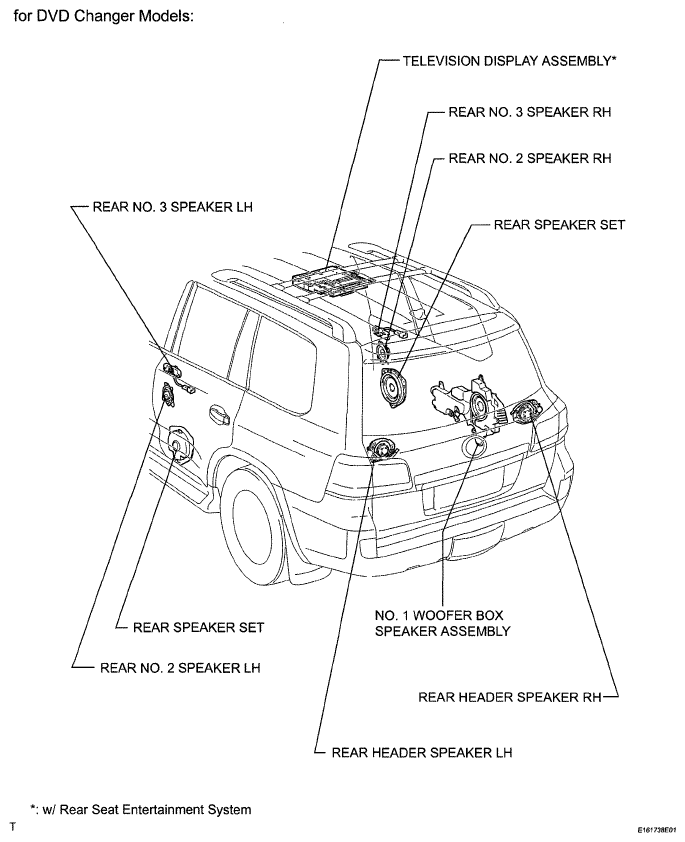

Fig 5: Identifying Audio And Visual System Parts Location (5 Of 5)
