Multi-display Communication Error: Wiring Diagram

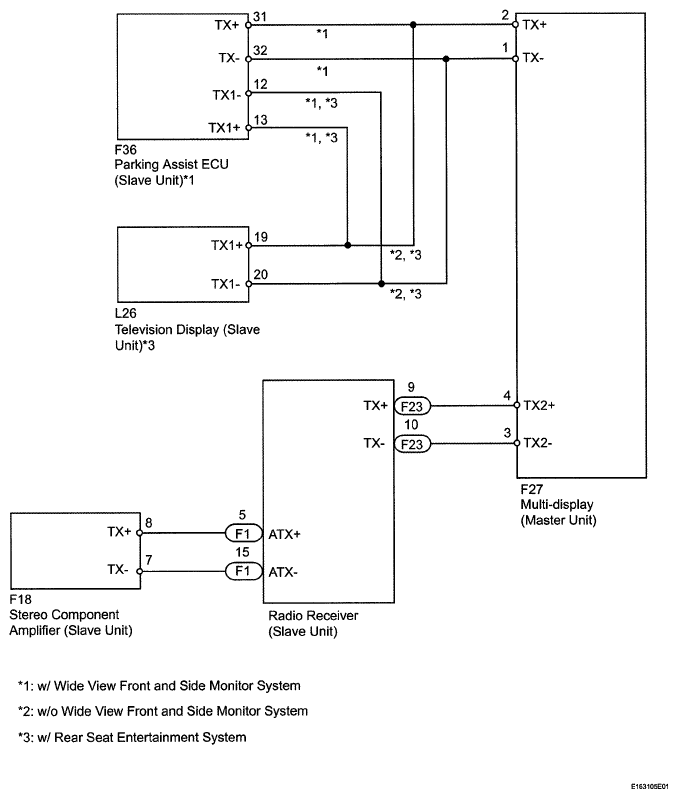

Fig 1: Multi-Display Communication Error - Wiring Diagram

G05762938

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
