Parts Location

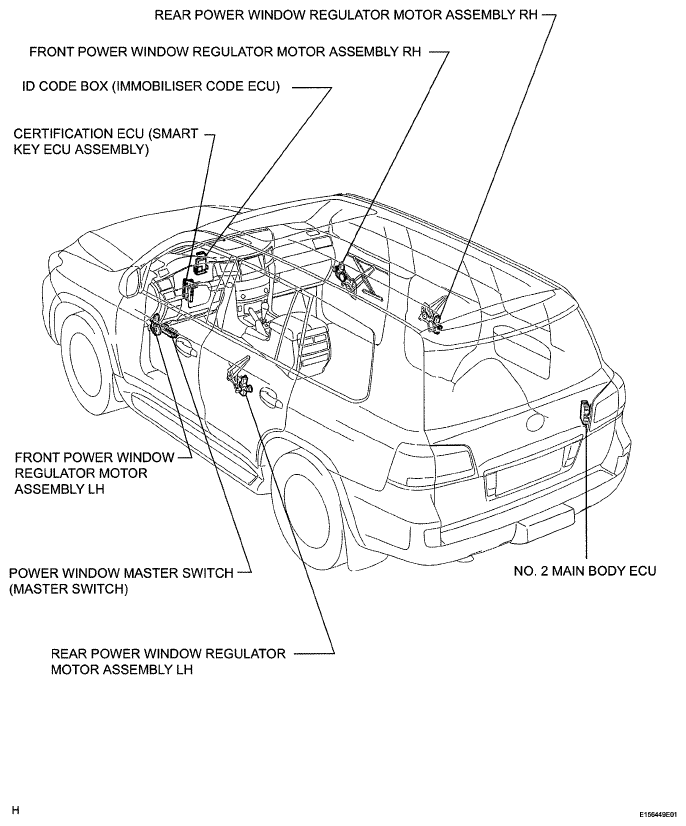

Fig 1: Identifying LIN Communication System Parts Location (1 Of 4)
G05764869Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

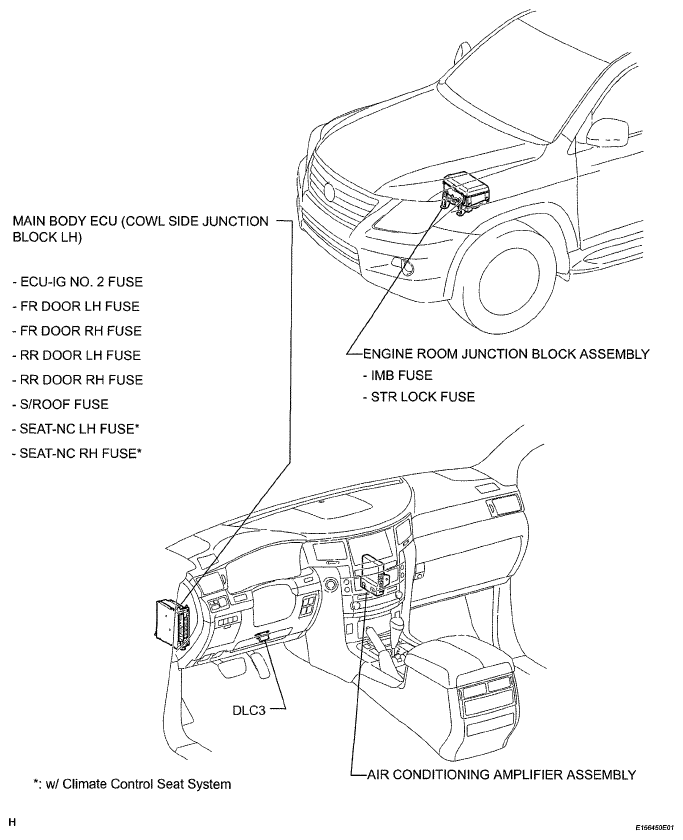

Fig 2: Identifying LIN Communication System Parts Location (2 Of 4)
G05764870Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

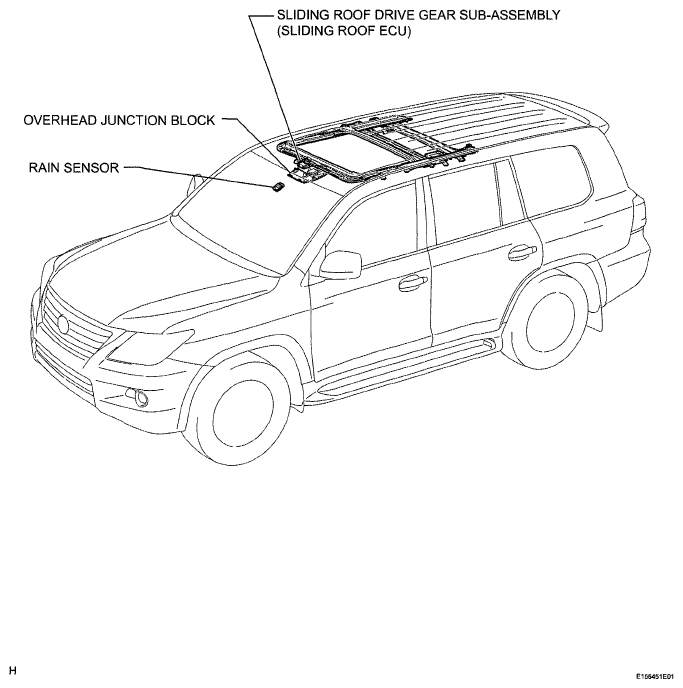

Fig 3: Identifying LIN Communication System Parts Location (3 Of 4)
G05764871Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

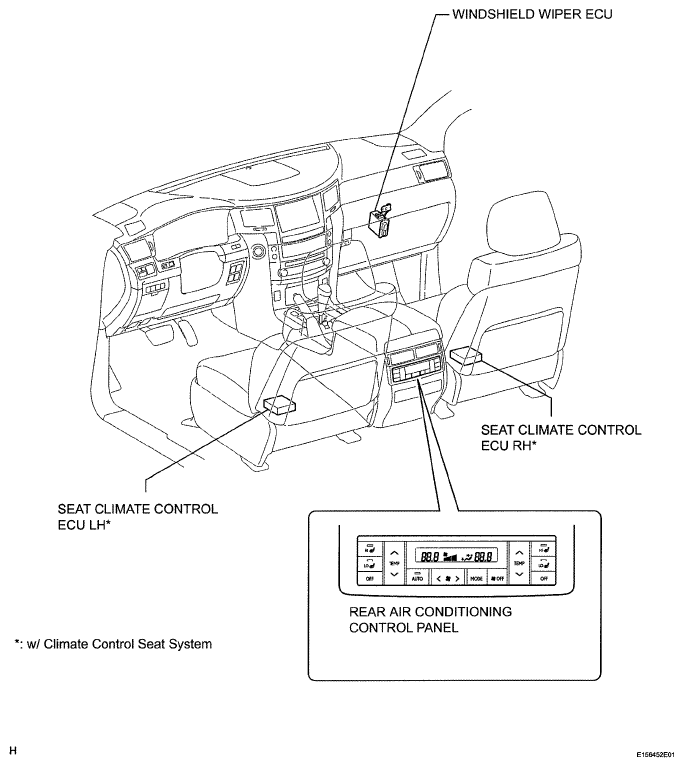

Fig 4: Identifying LIN Communication System Parts Location (4 Of 4)
G05764872Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
