Inspection Procedure

NOTE: When using the Techstream with the engine switch off to troubleshoot:
Connect the Techstream to the vehicle, and turn a courtesy switch on and off at 1.5 second intervals until communication between the Techstream and vehicle begins.

HINT:

When DTC B2287 and B2785 are output simultaneously, perform the troubleshooting for DTC B2785 first (See DTC B2785 COMMUNICATION MALFUNCTION BETWEEN ECUs CONNECTED BY LIN ).

CLEAR DTC
1. Clear the DTC (See DTC CHECK / CLEAR ).

CHECK FOR DTC

Recheck for DTCs (See DTC CHECK / CLEAR ).

Result

RESULT CHART

Result	Proceed to
DTC B2287 is output	A
DTC B2287 is not output	B

B: USE SIMULATION METHOD TO CHECK (See ELECTRONIC CIRCUIT INSPECTION PROCEDURE )

A: Go to next Step

CHECK HARNESS AND CONNECTOR (CERTIFICATION ECU - MAIN BODY ECU)

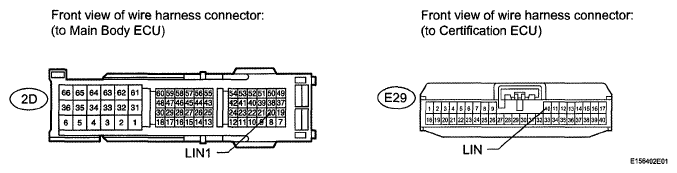

Fig 1: Checking Harness And Connector (Certification ECU - Main Body ECU)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Disconnect the E29 and 2D ECU connectors.
Measure the resistance and voltage according to the value (s) in the tables below.

Standard Resistance

TESTER CONNECTION SPECIFIED CONDITION CHART

Tester Connection	Condition	Specified Condition
E29-10 (LIN) - 2D-20 (LIN1)	Always	Below 1 Ω
E29-10 (LIN) or 2D-20 (LIN1) - Body ground	Always	10 kΩ or higher

Standard Voltage

TESTER CONNECTION SPECIFIED CONDITION CHART

Tester Connection	Condition	Specified Condition
E29-10 (LIN) or 2D-20 (LIN1) - Body ground	Always	Below 1 V

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next Step

CHECK MAIN BODY ECU (COWL SIDE JUNCTION BLOCK LH)
1. Temporarily replace the main body ECU (cowl side junction block LH) with a new or normally functioning one.
2. Clear the DTC (See DTC CHECK / CLEAR ).

CHECK FOR DTC

Recheck for DTCs (See DTC CHECK / CLEAR ).

Result

RESULT CHART

Result	Proceed to
DTC B2287 is not output	A
DTC B2287 is output	B

B: REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) (See REMOVAL )

A: END (MAIN BODY ECU IS DEFECTIVE)
