Parts Location

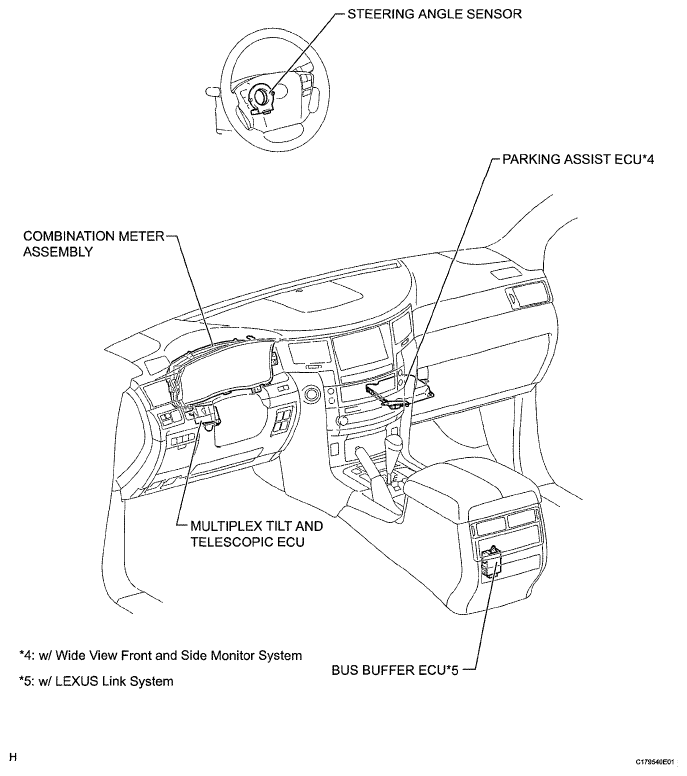

Fig 1: Identifying CAN Communication System Parts Location (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

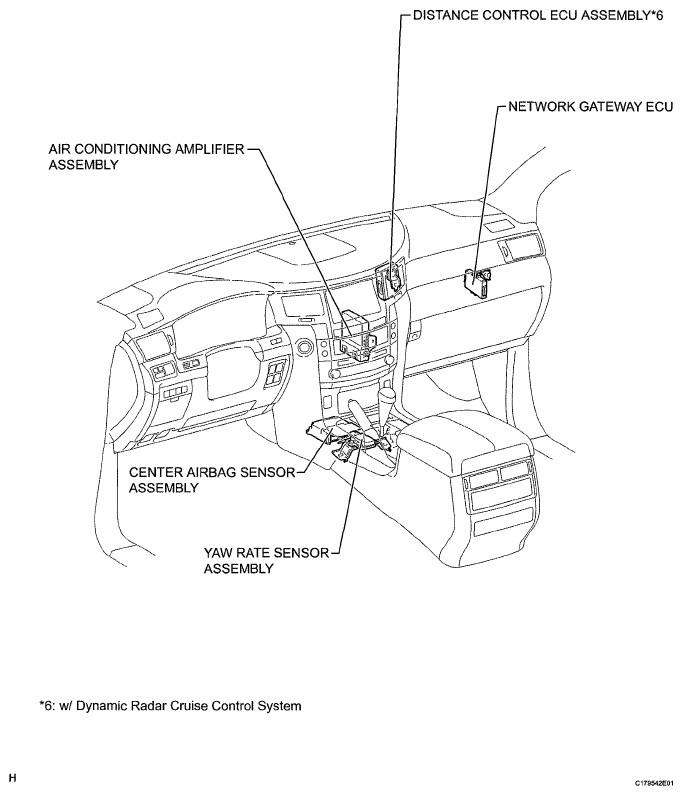

Fig 2: Identifying CAN Communication System Parts Location (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

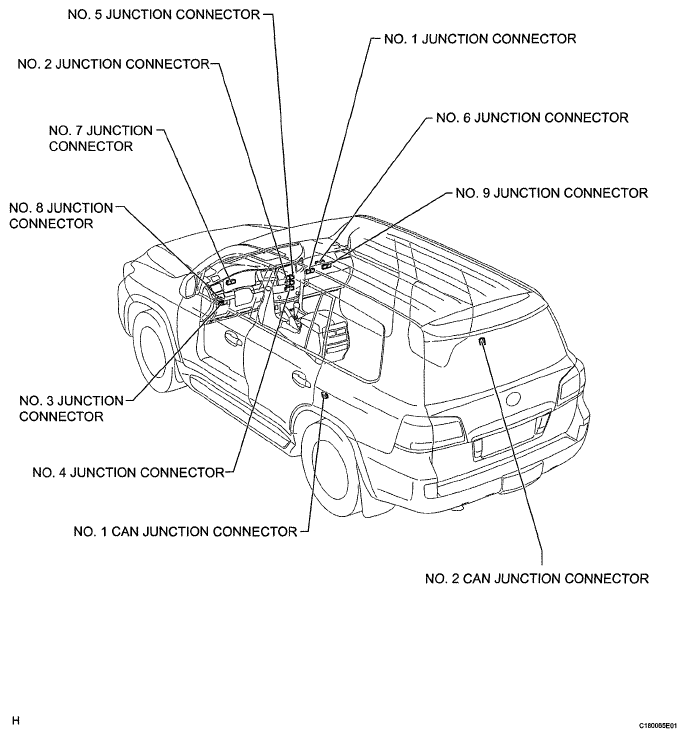

Fig 3: Identifying CAN Communication System Parts Location (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

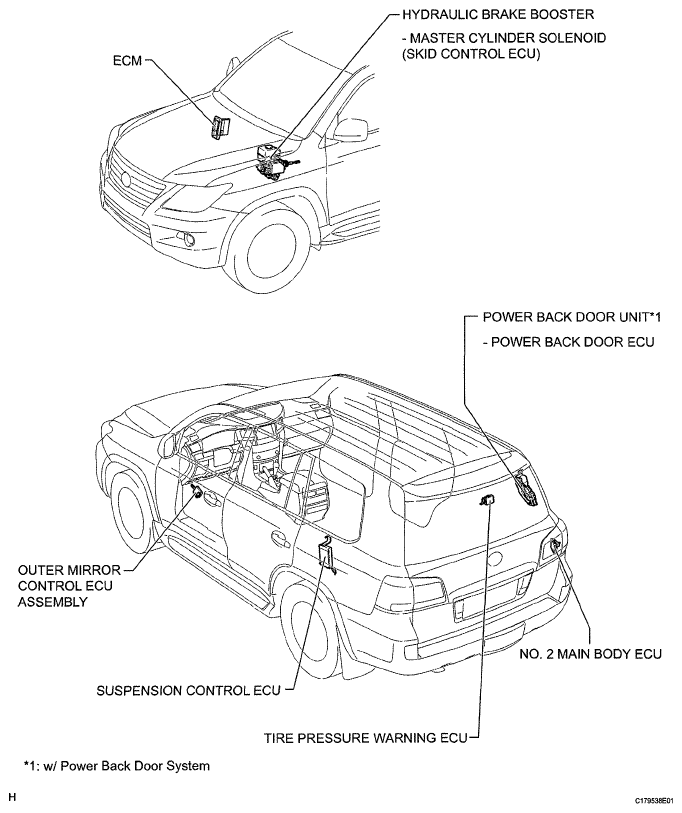

Fig 4: Identifying CAN Communication System Parts Location (4 Of 6)

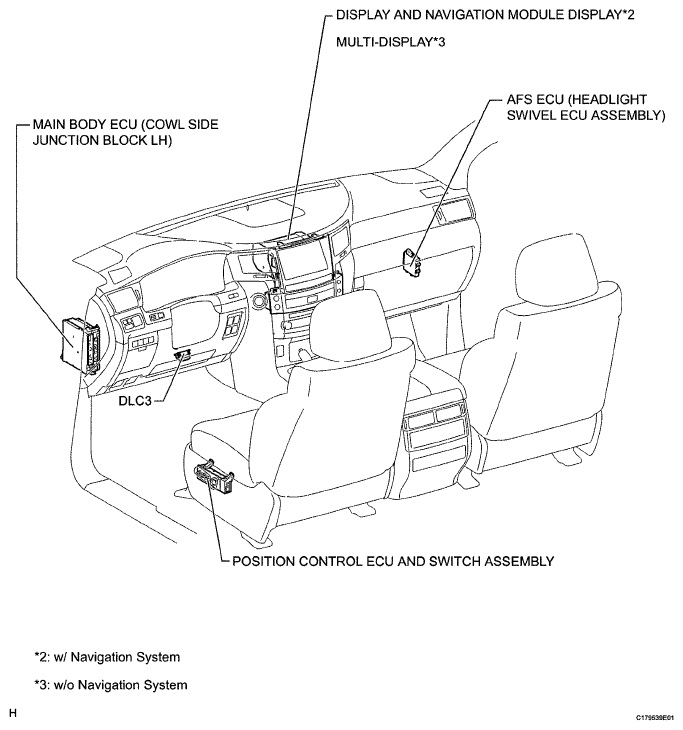

Fig 5: Identifying CAN Communication System Parts Location (5 Of 6)

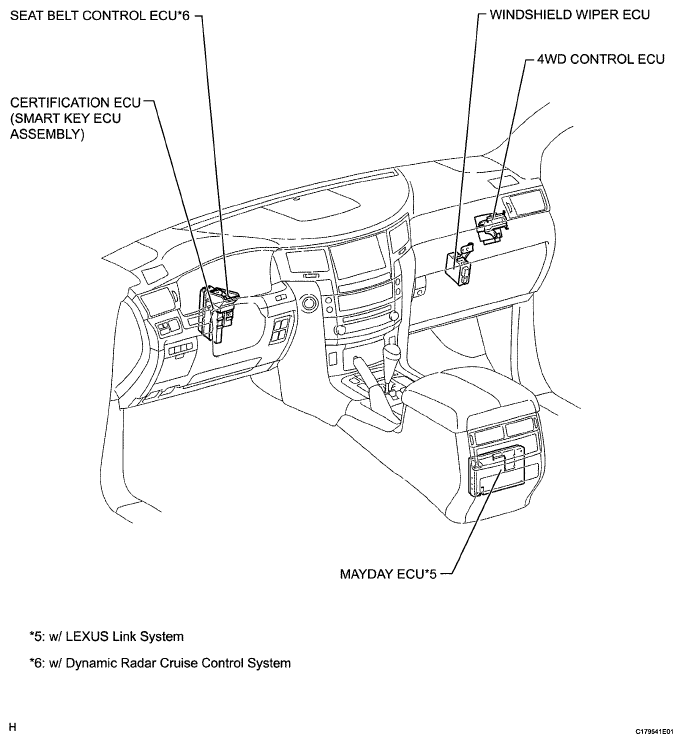

Fig 6: Identifying CAN Communication System Parts Location (6 Of 6)
