Home >> Lexus >> 2008 >> LX 570 >> Repair and Diagnosis >> Accessories & Equipment >> Communication Devices >> Cellular Communication >> Mayday Battery >> Components

Mayday Battery: Components

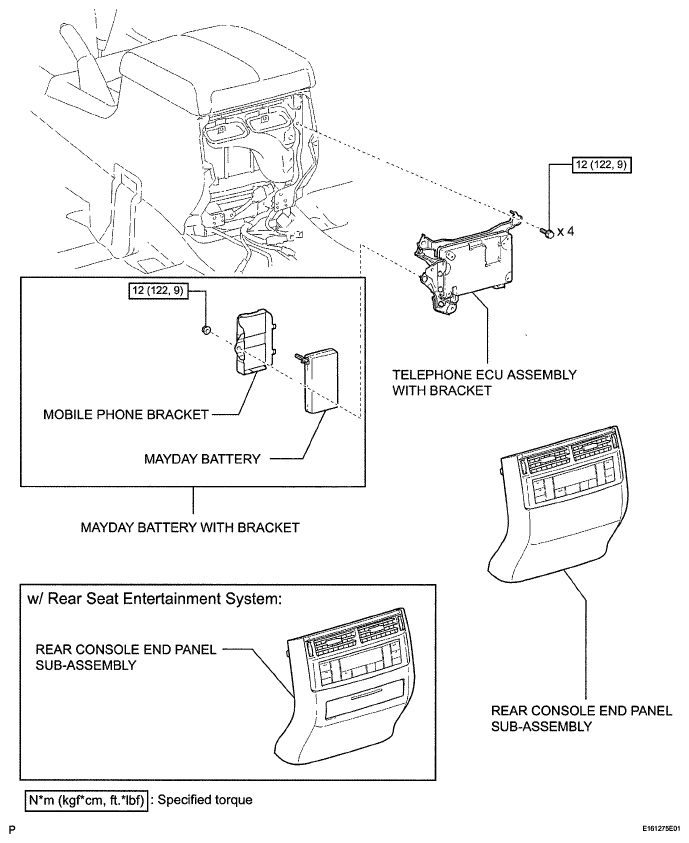

Fig 1: Mayday Battery With Torque Specifications Replacement Components
G05764802Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
