Engine Room Relay Block Assembly and Engine Room Junction Block Assembly Inner Circuit

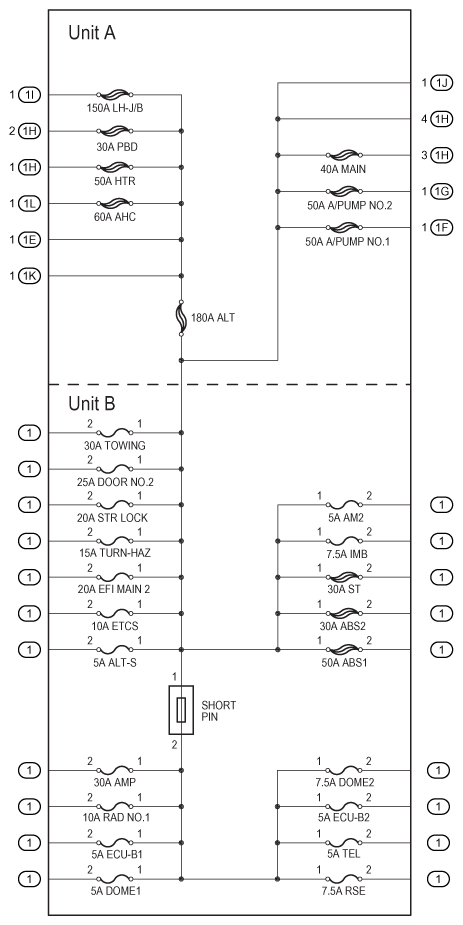

Fig 1: Engine Room R/B And J/B Assemblies Inner Circuit Diagram (View A)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Engine Room R/B And J/B Assemblies Inner Circuit Diagram (View C) With Relays

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE ROOM R/B AND J/B INNER CIRCUIT (VIEW C) RELAY IDENTIFICATION

RELAY DESCRIPTION
A/F Relay
Horn Relay
EFI Relay
IG2 Relay
