Back Door Entry Lock Function does not Operate: Wiring Diagram

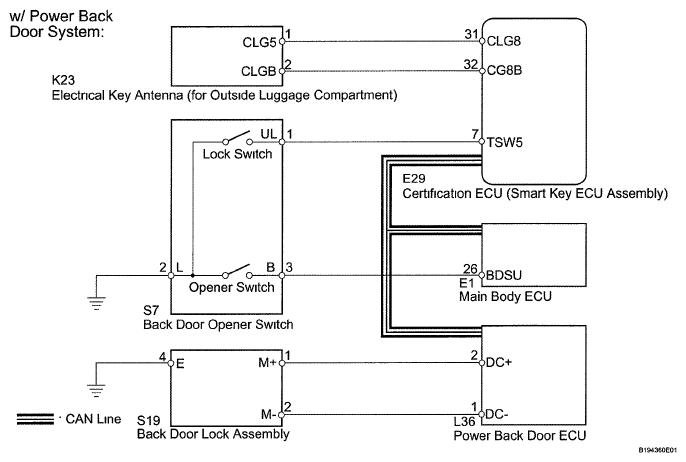

Fig 1: Back Door Entry Lock Function (W/ Power Back Door System) - Wiring Diagram
G05763741Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

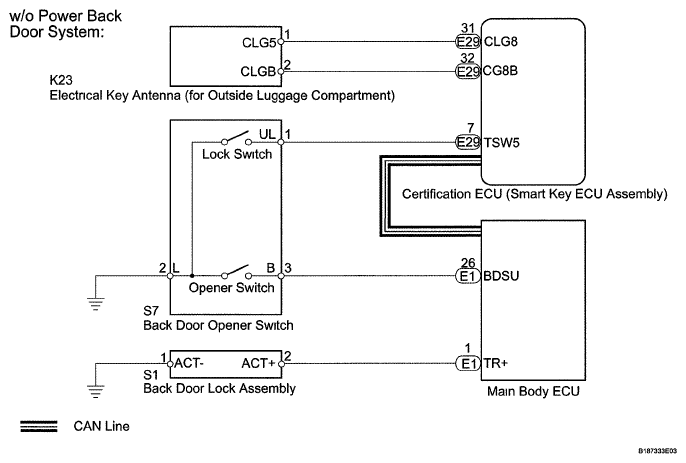

Fig 2: Back Door Entry Lock Function (W/O Power Back Door System) - Wiring Diagram
G05763742Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
