Lexus
>>
2008
>>
LX 570
>>
Repair and Diagnosis (Single Page)
>>
Accessories & Equipment
>>
Infotainment
>>
Navigation
>>
Navigation System
>>
Display and Navigation Assembly Communication Error
>>
Wiring Diagram
Display and Navigation Assembly Communication Error: Wiring Diagram

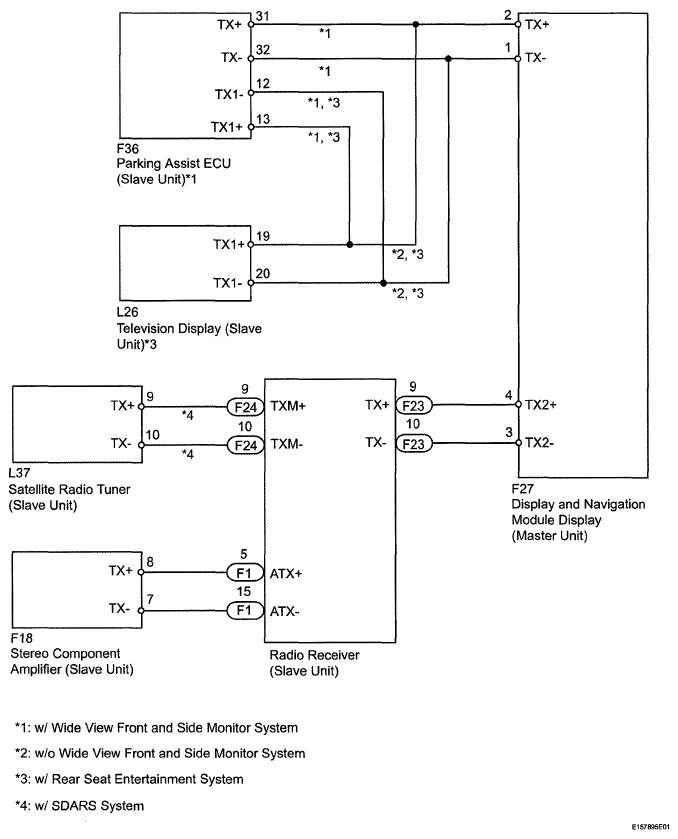

Fig 1: Display And Navigation Assembly Communication Error - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
