Room Oscillator does not Recognize Key: Wiring Diagram

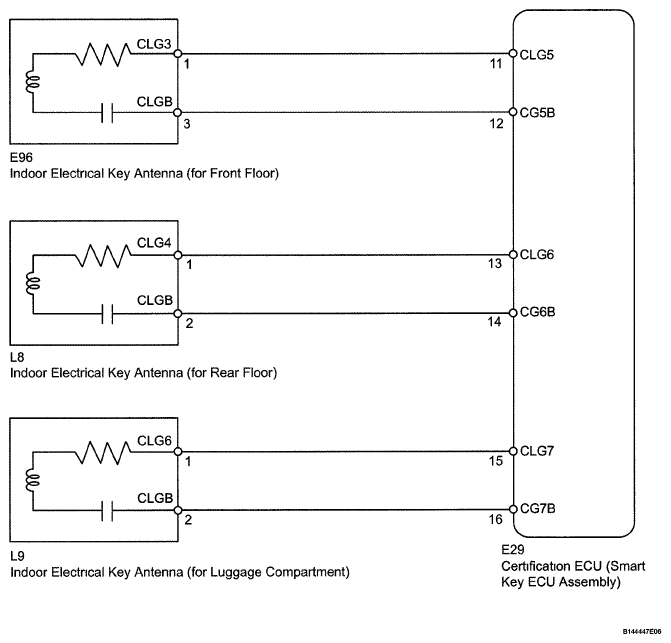

Fig 1: Room Oscillator - Wiring Diagram

G05763730

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
