Shift Lever: Components

Fig 1: Identifying Shift Lever Replacement Components (1 Of 3)
G05781046Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

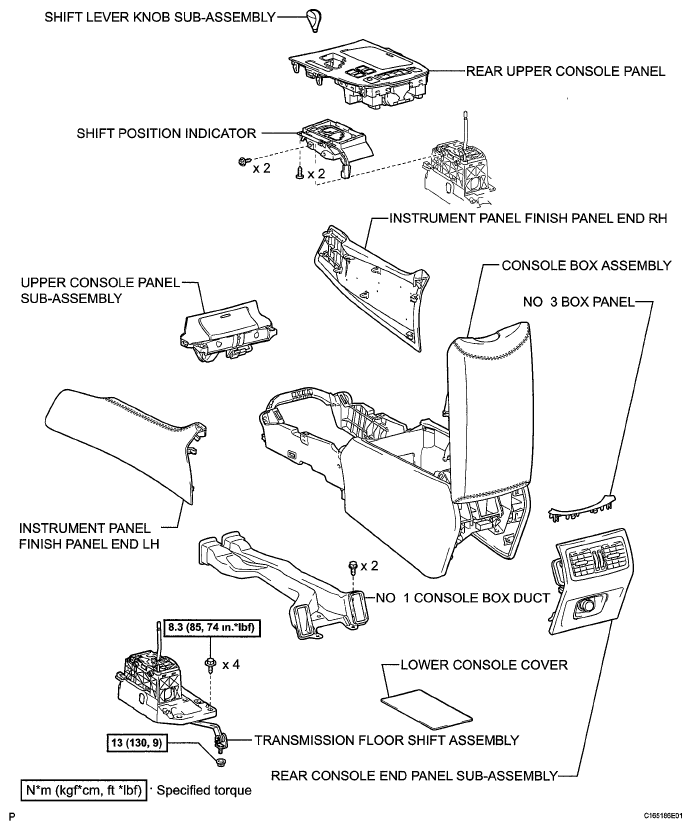

Fig 2: Identifying Shift Lever Replacement Components With Torque Specifications (2 Of 3)
G05781047Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

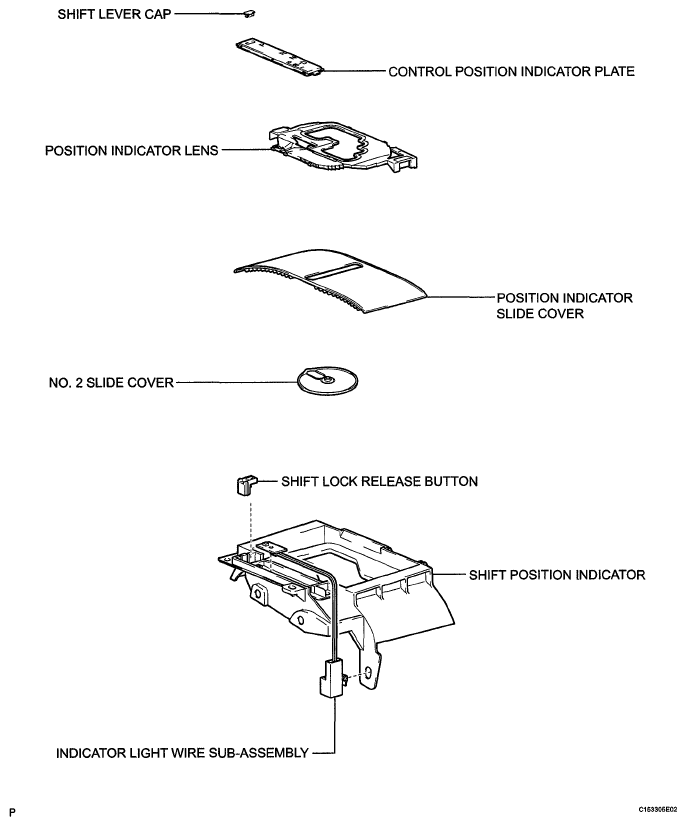

Fig 3: Identifying Shift Lever Replacement Components (3 Of 3)
G05781048Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
