Oil Pressure Switch: Components

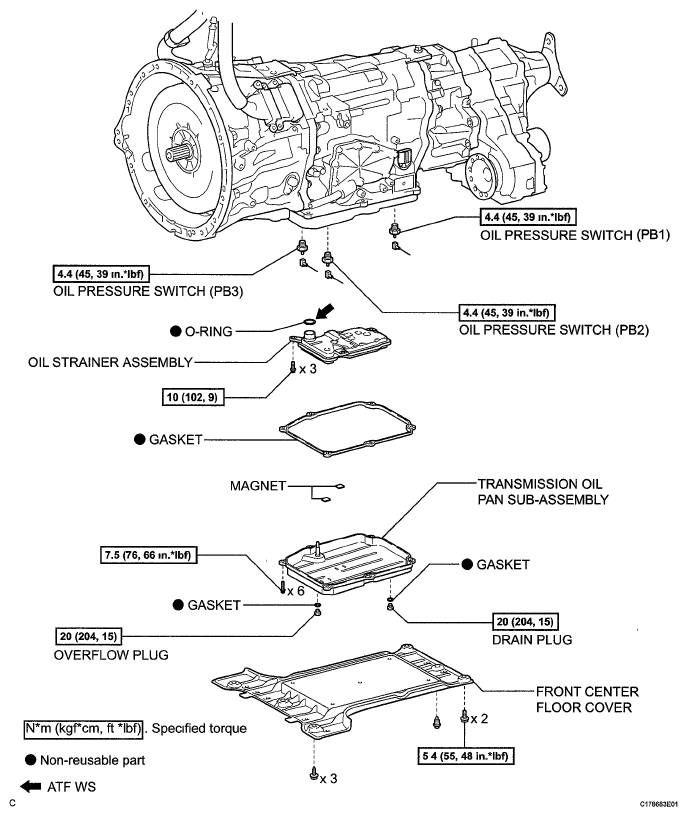

Fig 1: Oil Pressure Switch With Torque Specifications

G05781088

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
