Rear Stabilizer Bar: Installation

HINT:

A bolt without a torque specification is shown in the standard bolt chart (see SPECIFIED TORQUE FOR STANDARD BOLTS ).

  1. INSTALL REAR STABILIZER BAR
    1. Make sure the bracket's arrows face the front of the vehicle
      Fig 1: Identifying Rear Stabilizer Bar Bracket Installation Position
      G04949536Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. First, temporarily install bolt 1. Then install bolts 2, 3 and 4. Then tighten bolt 5.

      Torque: 48 N.m (489 kgf.cm, 35 ft. lbf.)

      Fig 2: Tightening Rear Stabilizer Bar Bolts
      G04949537Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL REAR STABILIZER LINK ASSEMBLY LH
    1. Install the stabilizer link with the nut and bolt.

      Torque: 26 N.m (265 kgf.cm, 19 ft. lbf.)

      Fig 3: Identifying Stabilizer Link From Rear No 2 Suspension Arm
      G04949531Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the stabilizer link with the nut.

      Torque: 89 N.m (908 kgf.cm, 66 ft. lbf.)

      Fig 4: Locating Rear Stabilizer Link With Nut
      G04949530Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL REAR STABILIZER LINK ASSEMBLY RH

    HINT:

    Use the same procedures described for the LH side.

  4. INSTALL REAR SUSPENSION MEMBER SUB-ASSEMBLY
    1. Support the rear suspension member with an engine lift and attachments.
      CAUTION:
      • As the rear suspension member is very heavy, securely support it with an engine lifter with attachments.
      • Perform this procedure with several people supporting the rear suspension member so that it does not tilt or fall.
    2. Slowly raise the suspension member jack, and install the suspension member to the body
      Fig 5: Supporting Crossmember With Jack
      G04949532Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the 2 rear suspension member stopper lowers, and the 2 differential support member stopper lowers with the 4 bolts.

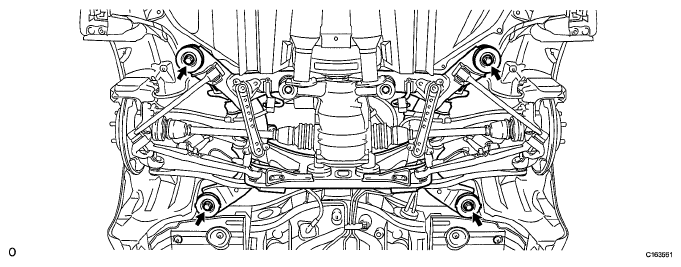

      Fig 6: Locating Suspension Member Bolts
      G05781808Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 127 N.m (1295 kgf.cm, 94 ft. lbf.)

  5. TEMPORARILY INSTALL PNEUMATIC CYLINDER WITH REAR SHOCK ABSORBER ASSEMBLY LH  (See INSTALLATION  )
  6. TEMPORARILY INSTALL PNEUMATIC CYLINDER WITH REAR SHOCK ABSORBER ASSEMBLY RH

    HINT:

    Use the same procedures described for the LH side.

  7. INSTALL REAR DISC BRAKE CALIPER ASSEMBLY LH  (See INSTALLATION )
  8. INSTALL REAR DISC BRAKE CALIPER ASSEMBLY RH

    HINT:

    Use the same procedures described for the LH side.

  9. INSTALL REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY LH  (See INSTALLATION )
  10. INSTALL REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY RH

    HINT:

    Use the same procedures described for the LH side.

  11. INSTALL LOAD SENSING VALVE SENSOR BRACKET  (See INSTALLATION )
  12. INSTALL SKID CONTROL SENSOR WIRE  (See INSTALLATION )
  13. INSTALL ELECTRIC PARKING BRAKE ACTUATOR CAP  (See INSTALLATION )
  14. INSTALL FLOOR NO. 1 UNDER COVER  (See INSTALLATION )
  15. CONNECT WIRE HARNESS CLAMP  (See INSTALLATION )
  16. INSTALL REAR WHEEL HOUSE LINER LH
    1. Install the liner with the 4 screws, 11 nuts and 2 clips to the vehicle side.

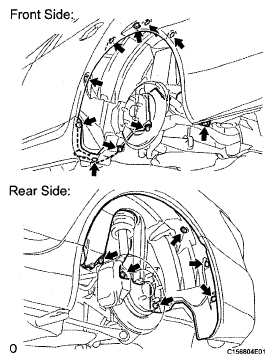

      Fig 7: Identifying Screws, Nuts And Clips From Liner
      G04949446Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. INSTALL PROPELLER SHAFT WITH CENTER BEARING ASSEMBLY  (See INSTALLATION )
  18. TIGHTEN NO. 1 CENTER SUPPORT BEARING ASSEMBLY  (See INSTALLATION )
  19. INSPECT AND ADJUST NO. 2 AND NO. 3 JOINT ANGLE  (See INSTALLATION )
  20. INSTALL PROPELLER SHAFT HEAT INSULATOR  (See INSTALLATION )
  21. INSTALL FRONT FLOOR NO. 1 HEAT INSULATOR  (See INSTALLATION )
  22. INSTALL NO. 1 EXHAUST PIPE SUPPORT BRACKET SUB-ASSEMBLY  (See INSTALLATION )
  23. INSTALL EXHAUST PIPE DAMPER  (See INSTALLATION )
  24. INSTALL TAILPIPE RH  (See INSTALLATION )
  25. INSTALL TAILPIPE LH  (See INSTALLATION )
  26. INSTALL HEATED OXYGEN SENSOR (for Bank 1 Sensor 2)  (See INSTALLATION )
  27. INSTALL FRONT EXHAUST PIPE ASSEMBLY  (See INSTALLATION )
  28. CONNECT EXHAUST GAS TEMPERATURE SENSOR  (See INSTALLATION )
  29. CONNECT EXHAUST PIPE AIR HOSE  (See INSTALLATION )
  30. INSTALL NO. 2 HEATED OXYGEN SENSOR (for Bank 2 Sensor 2)  (See INSTALLATION )
  31. INSTALL FRONT CENTER FLOOR BRACE  (See INSTALLATION )
  32. INSTALL FRONT CENTER FLOOR COVER  (See INSTALLATION )
  33. INSTALL FRONT FLOOR COVER RH  (See INSTALLATION )
  34. INSTALL FRONT FLOOR COVER LH  (See INSTALLATION )
  35. INSTALL REAR FLOOR SIDE MEMBER COVER RH  (See INSTALLATION )
  36. INSTALL REAR FLOOR SIDE MEMBER COVER LH  (See INSTALLATION )
  37. INSTALL NO. 5 ROCKER PANEL MOLDING PROTECTOR  (See INSTALLATION )
  38. INSTALL NO. 6 ROCKER PANEL MOLDING PROTECTOR  (See INSTALLATION )
  39. INSTALL NO. 1 DIFFERENTIAL SUPPORT PROTECTOR  (See INSTALLATION )
  40. INSTALL NO. 2 DIFFERENTIAL SUPPORT PROTECTOR  (See INSTALLATION )
  41. CONNECT ELECTRIC PARKING BRAKE ACTUATOR CONNECTOR  (See INSTALLATION )
  42. INSTALL SEAT VIBRATOR MODULE ASSEMBLY (for Ottoman)  (See INSTALLATION )
  43. INSTALL BATTERY CARRIER ASSEMBLY  (See INSTALLATION )
  44. INSTALL BATTERY  (See INSTALLATION )
  45. INSTALL LUGGAGE COMPARTMENT TRIM COVER ASSEMBLY LH  (See INSTALLATION )
  46. INSTALL REAR FLOOR FINISH PLATE  (See INSTALLATION )
  47. INSTALL FRONT LUGGAGE COMPARTMENT TRIM COVER  (See INSTALLATION )
  48. INSTALL NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY  (See INSTALLATION )
  49. INSTALL NO. 1 COOLER COVER (w/ Rear Cooler)  (See INSTALLATION )
  50. INSTALL DECK TRIM SIDE BOARD RH  (See INSTALLATION )
  51. INSTALL ROPE HOOK ASSEMBLY  (See INSTALLATION )
  52. INSTALL ROPE HOOK  (See INSTALLATION )
  53. INSTALL SERVICE PLUG GRIP  (See INSTALLATION )
  54. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
    NOTE: Some systems need to be initialized after the cable is reconnected (see INITIALIZATION ).
  55. INSTALL BATTERY SERVICE HOLE COVER  (See INSTALLATION )
  56. INSTALL BATTERY SERVICE HOLE COVER LH  (See INSTALLATION )
  57. INSTALL SPARE TIRE
  58. INSTALL TOOL BOX
  59. INSTALL LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY  (See INSTALLATION )
  60. STABILIZE SUSPENSION  (See INSTALLATION  )
  61. TIGHTEN PNEUMATIC CYLINDER WITH REAR SHOCK ABSORBER ASSEMBLY LH  (See INSTALLATION  )
  62. TIGHTEN PNEUMATIC CYLINDER WITH REAR SHOCK ABSORBER ASSEMBLY RH

    HINT:

    Use the same procedures described for the LH side.

  63. INSTALL REAR WHEEL

    Torque: 140 N.m (1428 kgf.cm, 103 ft. lbf.)

  64. CHECK SUSPENSION CONTROL SYSTEM
    1. Check the suspension control system (see ADJUSTMENT )
  65. INSPECT AND ADJUST REAR WHEEL ALIGNMENT
    1. Inspect and adjust the rear wheel alignment (see ADJUSTMENT  ).
  66. CHECK SPEED SENSOR SIGNAL
    1. Check the speed sensor signal (see TEST MODE PROCEDURE ).
  67. ADJUST HEADLIGHT ASSEMBLY
    1. For LED headlight.

      Adjust the headlight (see ADJUSTMENT ).

    2. For HID headlight.

      Adjust the headlight (see ADJUSTMENT ).

  68. ADJUST OBJECT RECOGNITION CAMERA
    1. Adjust the object recognition camera (see ADJUSTMENT ).
  69. INSPECT FOR GAS LEAK  (See INSTALLATION )
