Lexus
>>
2008
>>
LS 600hL
>>
Repair and Diagnosis
>>
Suspension
>>
Suspension Control Systems
>>
Suspension Control
>>
Active Stabilizer Suspension System
>>
System Diagram
System Diagram

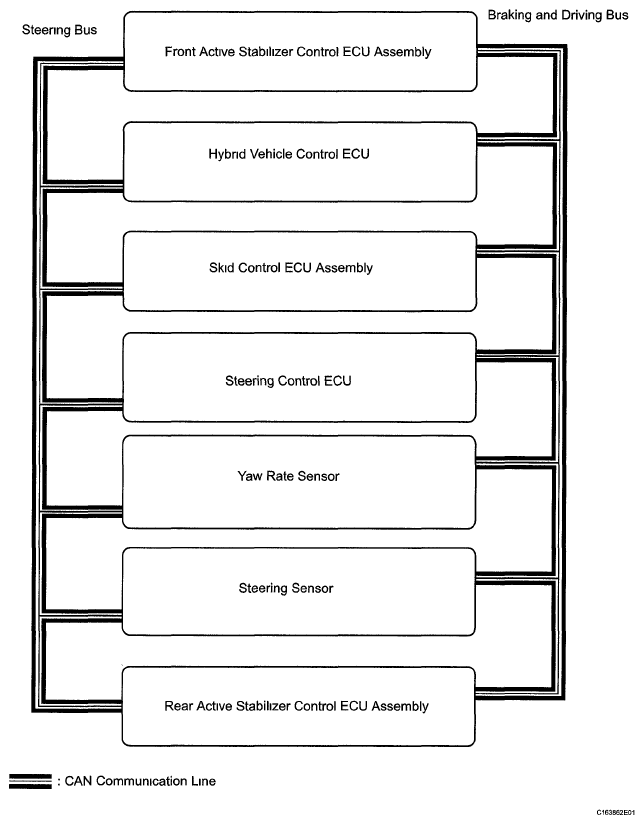

Fig 1: Active Stabilizer Suspension - System Diagram (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

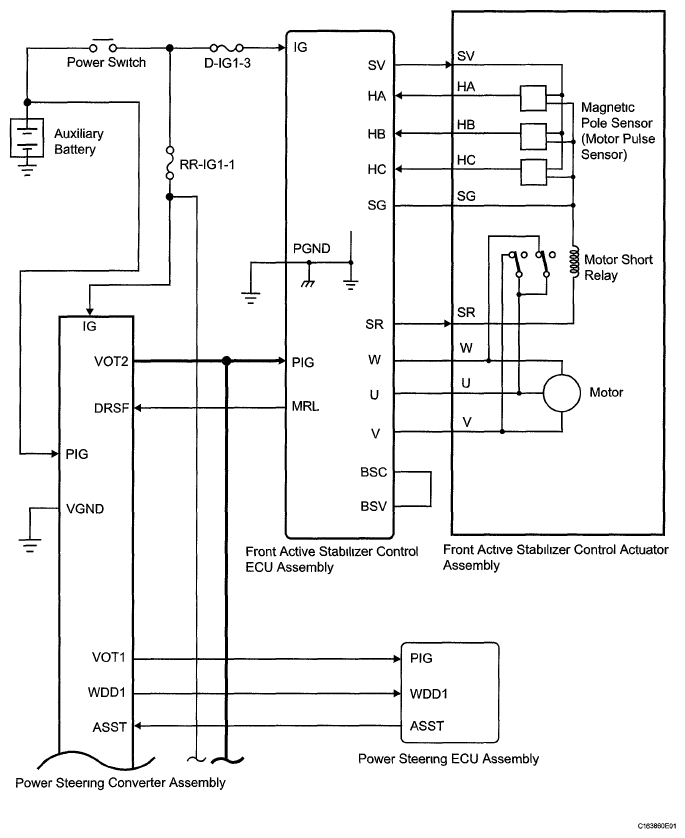

Fig 2: Active Stabilizer Suspension - System Diagram (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

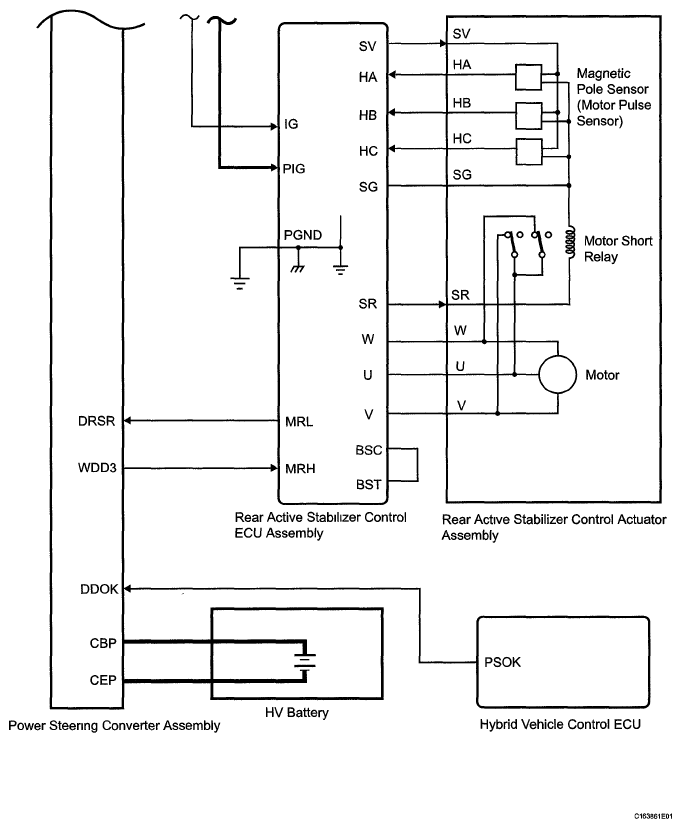

Fig 3: Active Stabilizer Suspension - System Diagram (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
