ABSORBER CONTROL ACTUATOR (for Front Side): Components

Fig 1: Rear Acceleration Sensor Replacement Components With Torque Specifications (1 Of 4)
G05773787Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

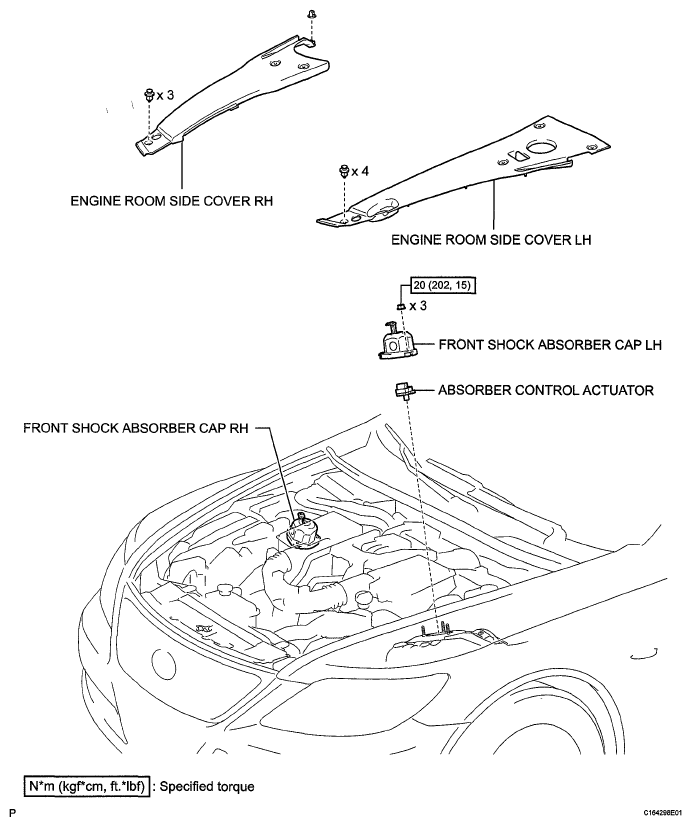

Fig 2: Absorber Control Actuator With Torque Specifications - For Front Side (2 Of 2)
G05773863Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
