Steering Gear: Components

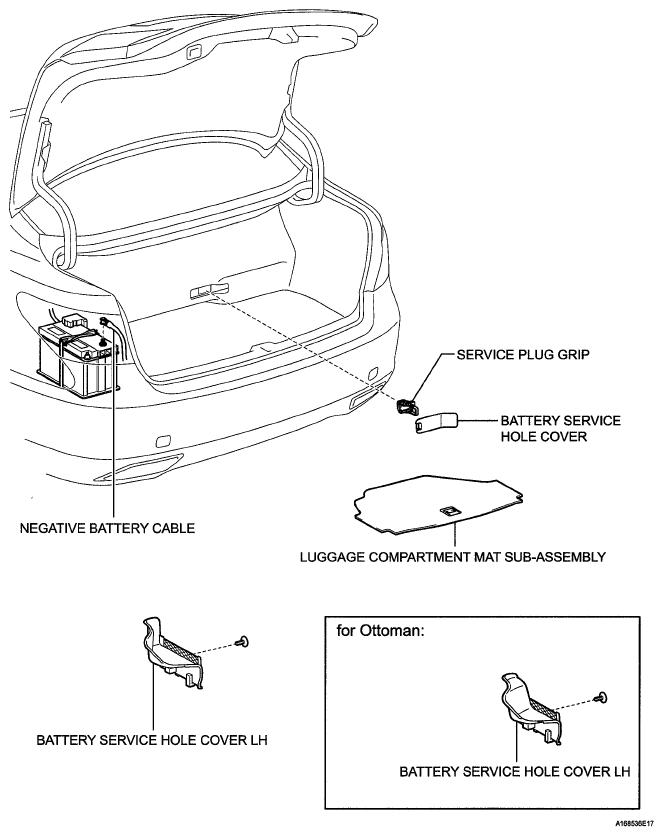

Fig 1: Identifying Auxiliary Battery And Service Plug Grip
G05782501Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Steering Gear Replacement Components With Torque Specifications (1 Of 2)
G05782502Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

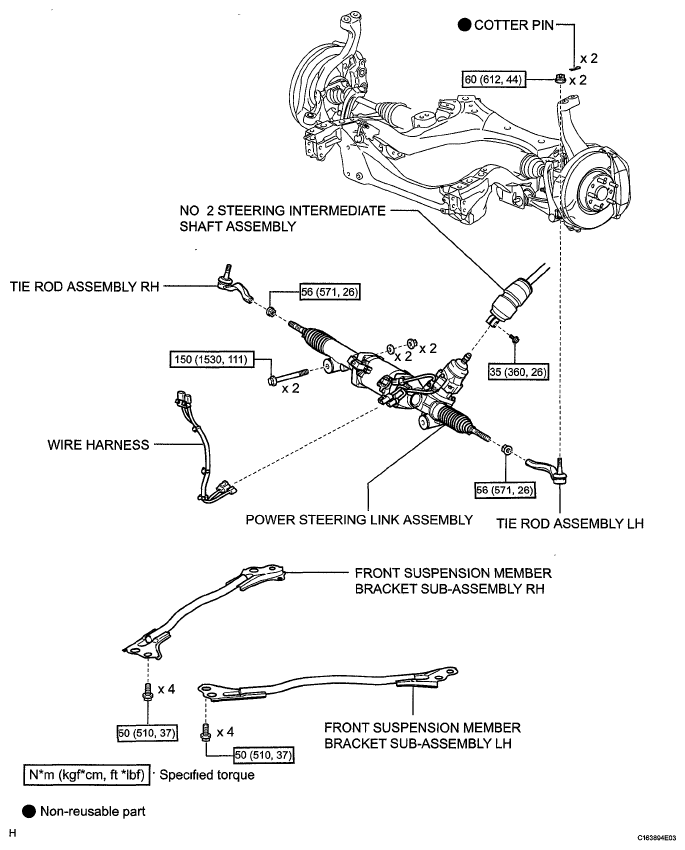

Fig 3: Steering Gear Replacement Components With Torque Specifications (2 Of 2)
G05782503Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
