Dc / Dc Converter: Components

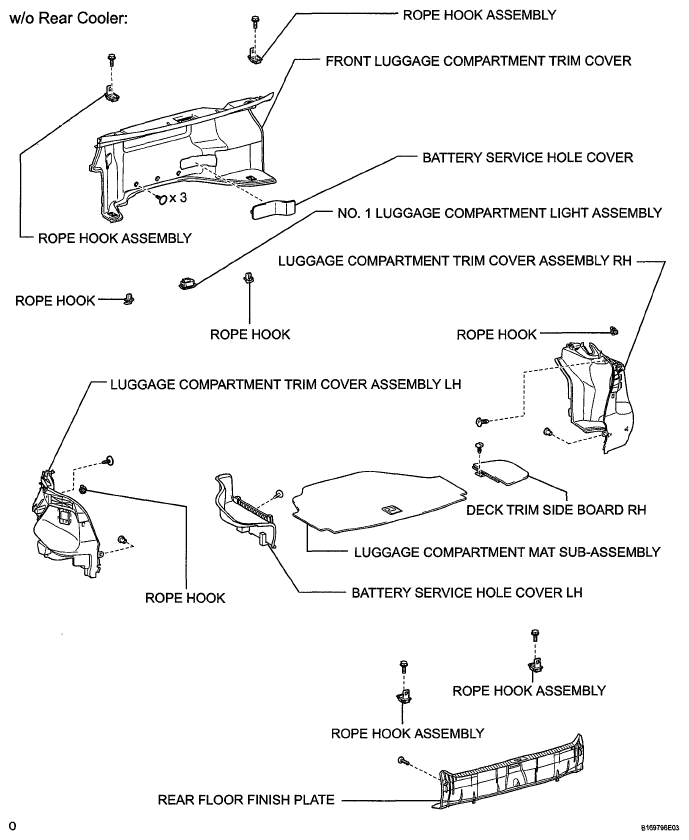

Fig 1: Identifying Trunk Trim W/o Rear Cooler
G05782528Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

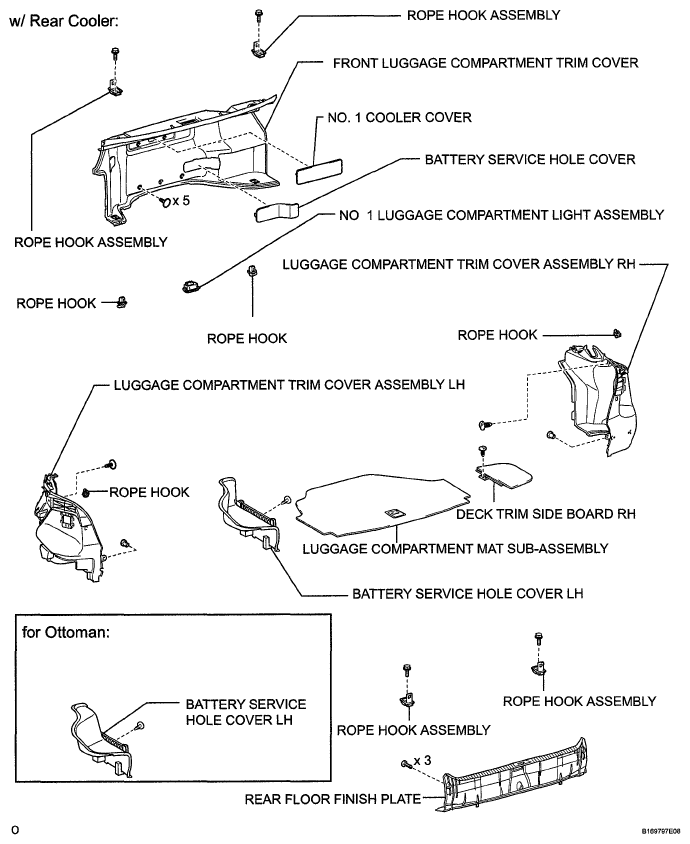

Fig 2: Identifying Trunk Trim With Rear Cooler
G05782529Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

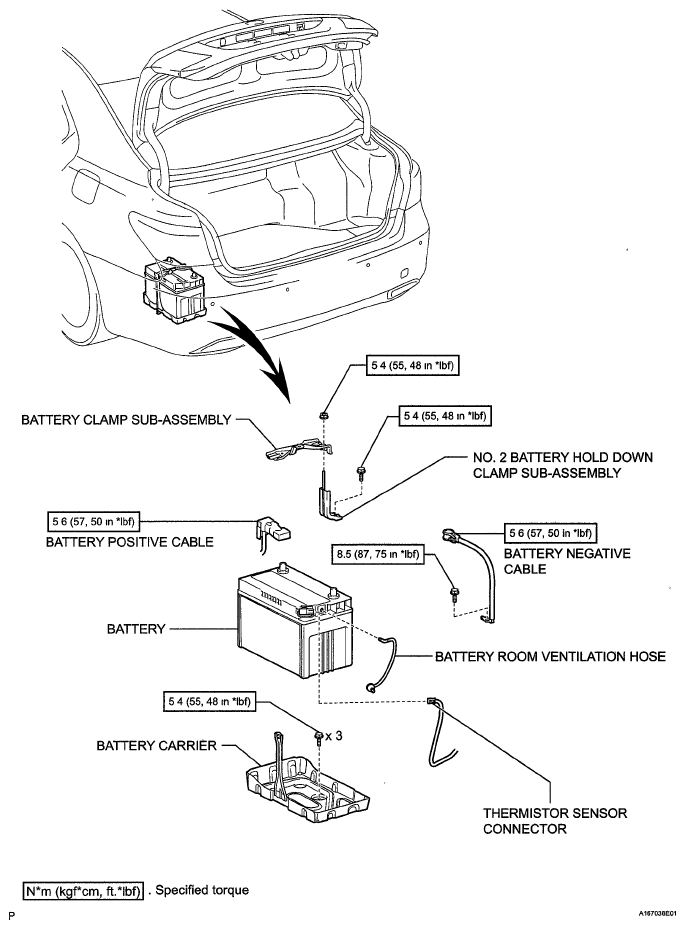

Fig 3: Identifying Auxiliary Battery Replacement Components And Torque Specifications
G05782530Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

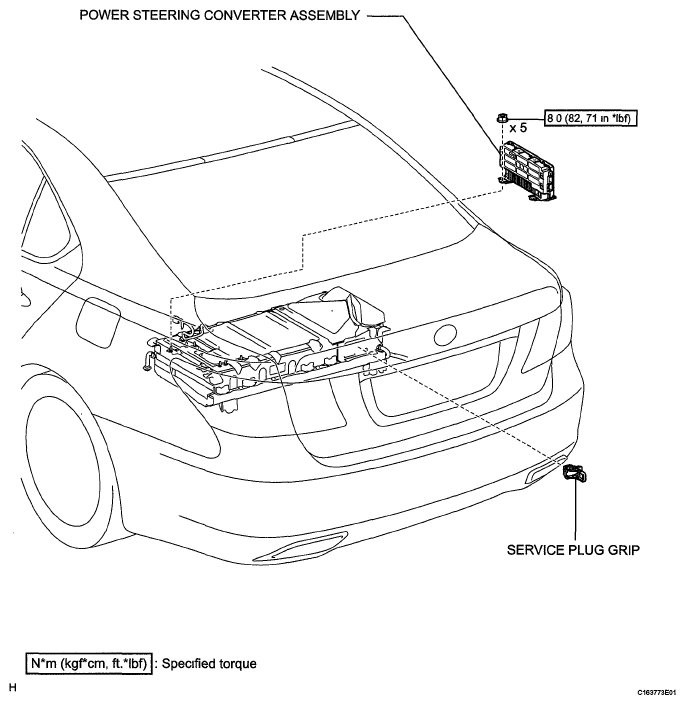

Fig 4: P/S Converter Assembly And Torque Specifications
G05782531Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
