Rear Evaporator Temperature Sensor: Components

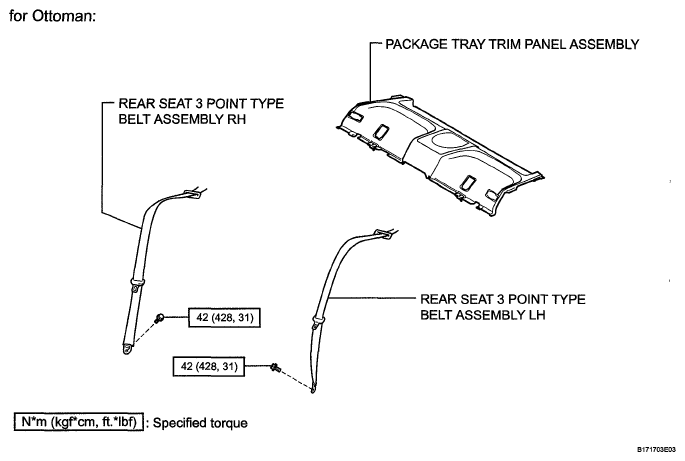

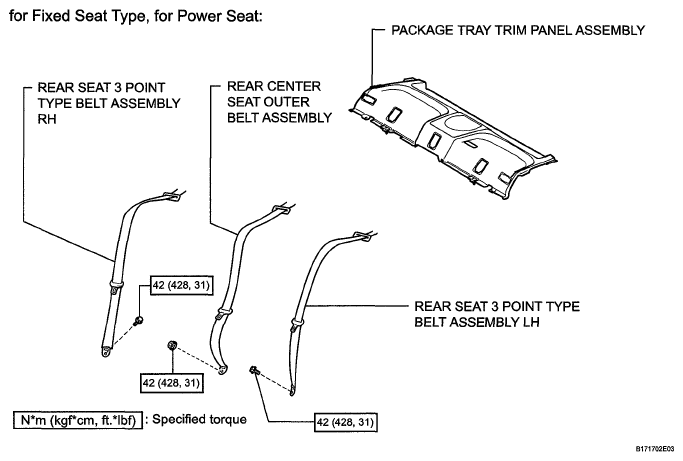

Fig 1: Rear Evaporator Temperature Sensor Replacement Components With Torque Specifications (1 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

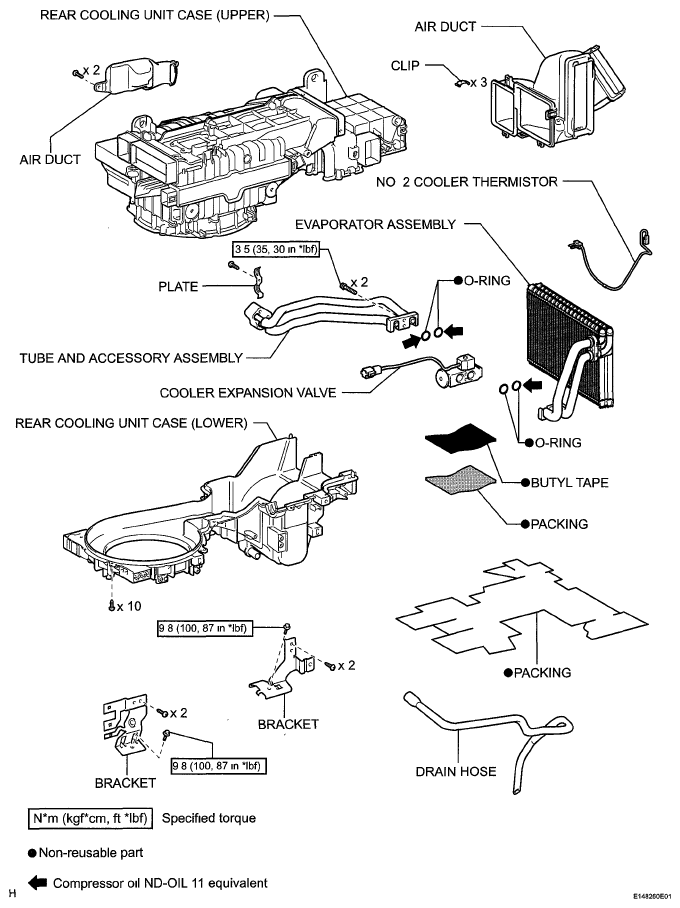

Fig 2: Rear Evaporator Temperature Sensor Replacement Components With Torque Specifications (2 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

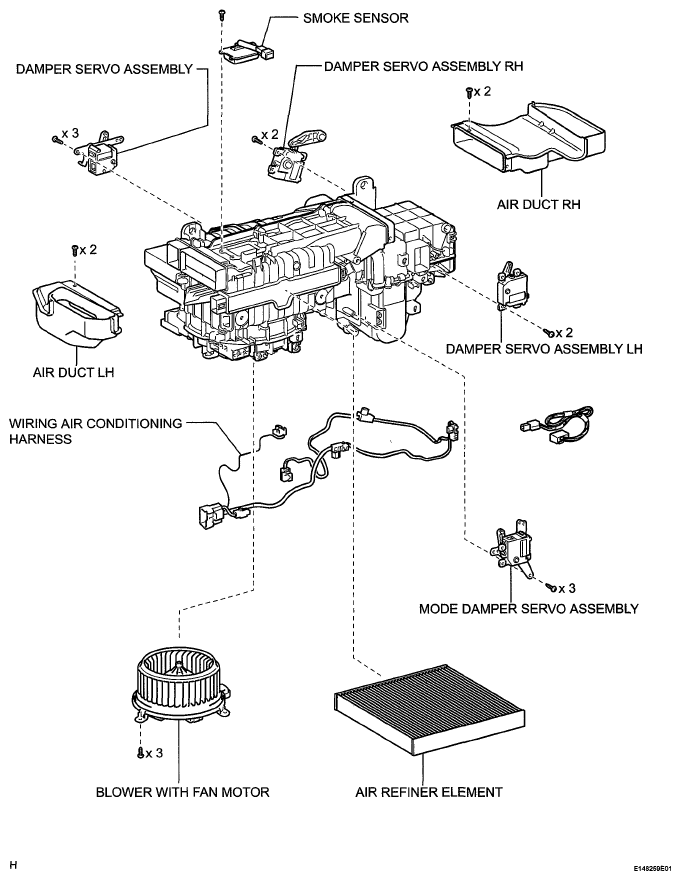

Fig 3: Rear Evaporator Temperature Sensor Replacement Components With Torque Specifications (3 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

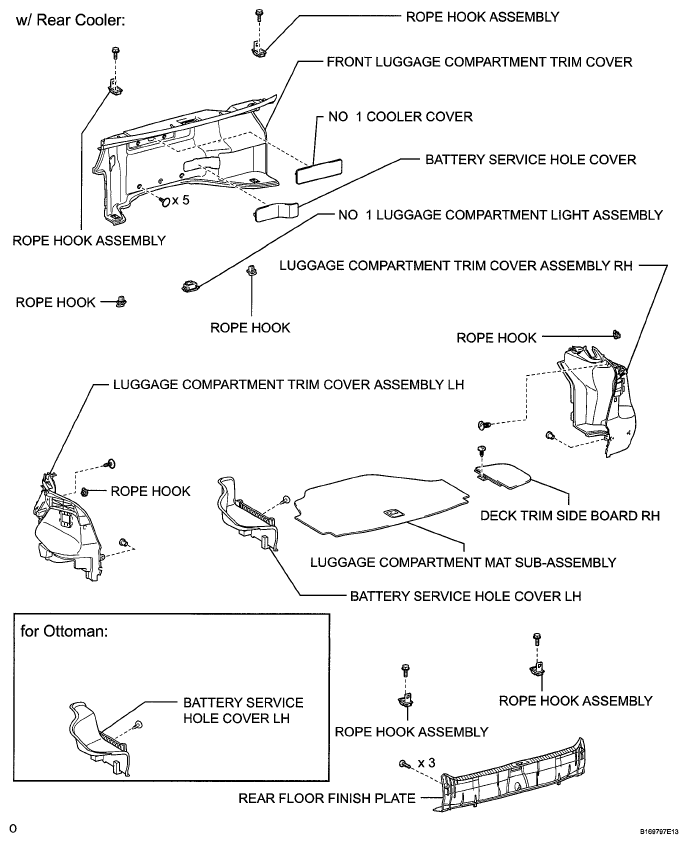

Fig 4: Identifying Rear Evaporator Temperature Sensor Components (4 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

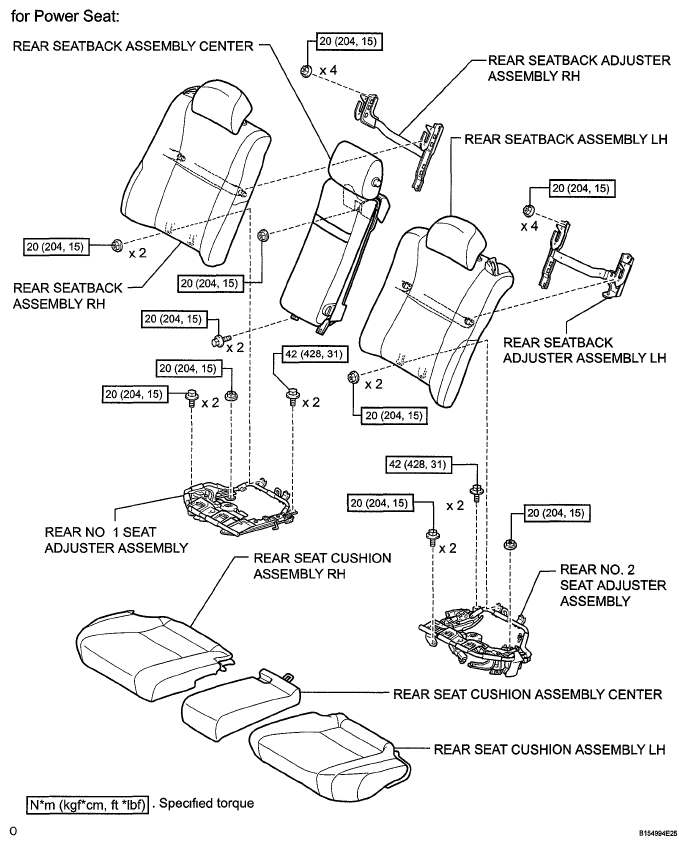

Fig 5: Rear Evaporator Temperature Sensor Replacement Components With Torque Specifications (5 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

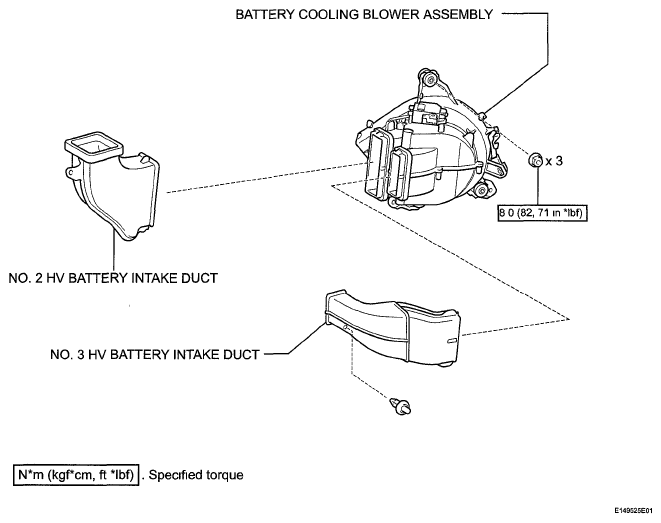

Fig 6: Rear Evaporator Temperature Sensor Replacement Components With Torque Specifications (6 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

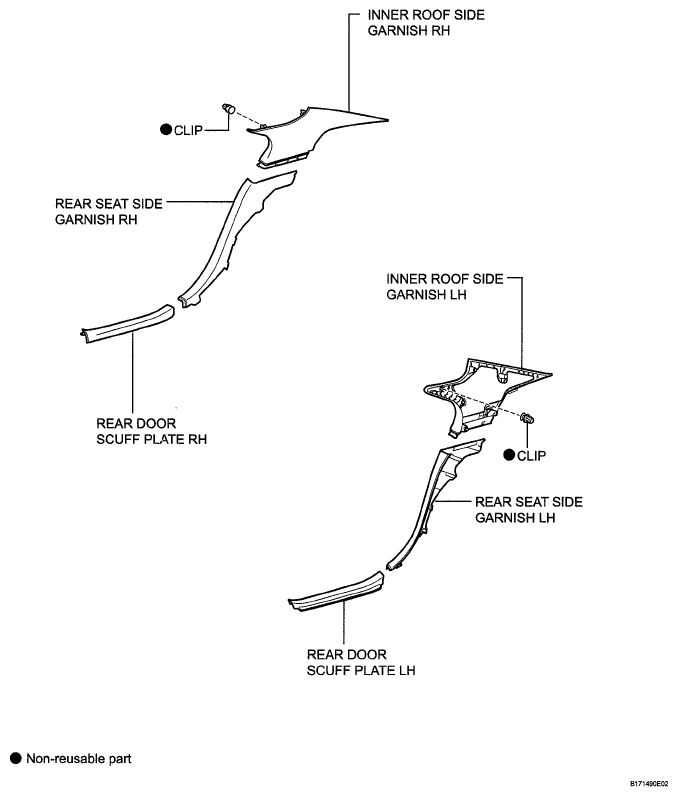

Fig 7: Identifying Rear Evaporator Temperature Sensor Components (7 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

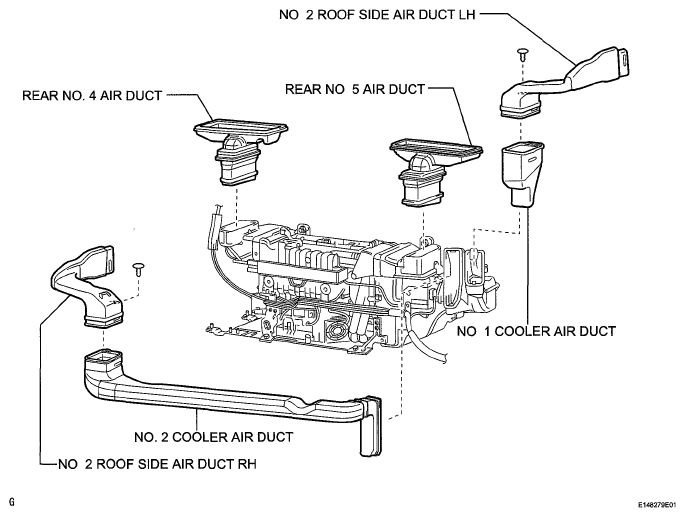

Fig 8: Identifying Rear Evaporator Temperature Sensor Components (8 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Rear Evaporator Temperature Sensor Replacement Components With Torque Specifications (9 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Identifying Rear Evaporator Temperature Sensor Components (10 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 11: Rear Evaporator Temperature Sensor Replacement Components With Torque Specifications (11 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
