Blower Unit: Removal

  1. REMOVE AIR CONDITIONING UNIT
    1. Remove the air conditioning unit (see REMOVAL  )
  2. REMOVE BLOWER ASSEMBLY
    1. Remove the screw.
    2. Disconnect the connector.
    3. Detach the claw and remove the blower unit.

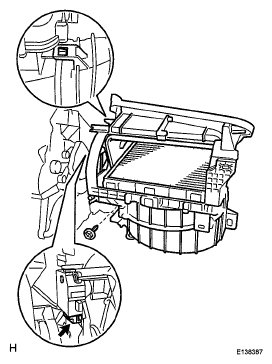

      Fig 1: Identifying Blower Unit Connector And Screw
      G05774572Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE DAMPER SERVO SUB-ASSEMBLY
    1. Remove the 3 screws and damper servo.
      Fig 2: Locating Damper Servo Screws
      G04950662Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE BLOWER WITH FAN MOTOR SUB-ASSEMBLY
    1. Remove the 3 screws and motor.
      Fig 3: Identifying Blower With Fan Motor And Screws
      G04950663Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE AIR FILTER
    1. Detach the 2 claws and remove the filter.
      Fig 4: Identifying Air Filter Claws
      G04950664Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
