Inspection Procedure
- INSPECT FUSE (PTC HTR1, PTC HTR3, PTC HTR)
- Remove the PTC HTR1 and PTC HTR3 fuses from the engine room No 4 relay block, and PTC HTR H-fuse from the engine room No. 1 junction block
- Measure the resistance according to the value(s) in the table below.
Standard resistance
TESTER CONNECTOR SPECIFIED CONDITION CHARTTester Connection Condition Specified Condition PTC HTR1 fuse Always Below 1 Ω PTC HTR3 fuse PTC HTR H-fuse
NG: REPLACE FUSE
OK: Go to Next Step
- CHECK AIR CONDITIONING AMPLIFIER
- Remove the air conditioning amplifier with its connectors still connected (see REMOVAL )
- Measure the voltage according to the value(s) in the table below
Standard voltage
TESTER CONNECTOR SPECIFIED CONDITION CHARTTester Connection Condition Specified Condition L76-27 (PTC1) - Body ground Power switch ON (IG)
Temperature setting: MAX. HOT
MODE switch: FOOT
Engine coolant temperature: 55°C (131°F) or lower
Blower switch: OFF11 to 14 V L76-35 (PTC3) - Body ground
NG: REPLACE AIR CONDITIONING AMPLIFIER (See REMOVAL )
OK: Go to Next Step
- INSPECT PTC HEATER RELAY (PTC HTR1, PTC HTR3)

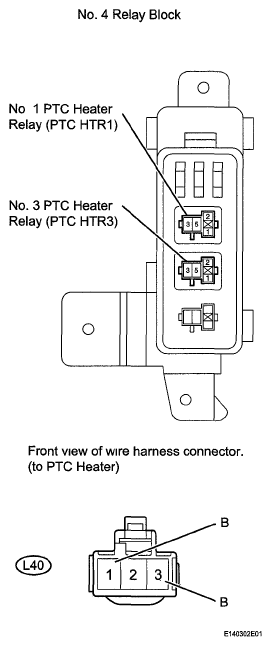

- Remove the PTC heater relays from the No. 4 relay block.
- Measure the resistance according to the value(s) in the table below.
Standard resistance
TESTER CONNECTOR SPECIFIED CONDITION CHARTTester Connection Condition Specified Condition 3 - 5 When battery voltage is not applied between terminals 1 and 2 10 kΩ or higher When battery voltage is applied to terminals 1 and 2 Below 1 Ω
NG: REPLACE PTC HEATER RELAY
OK: Go to Next Step
- CHECK HARNESS AND CONNECTOR (PTC HEATER RELAY - PTC HEATER)
- Remove the PTC heater relays from the No. 4 relay block.
- Disconnect the L40 PTC heater connector.
- Measure the resistance according to the value(s) in the table below.
Standard resistance
TESTER CONNECTOR SPECIFIED CONDITION CHARTTester Connection Condition Specified Condition PTC HTR1 terminal 3 - L40-1 (B) Always Below 1 Ω PTC HTR3 terminal 3 - L40-3 (B)
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: Go to Next Step
- CHECK PTC HEATER

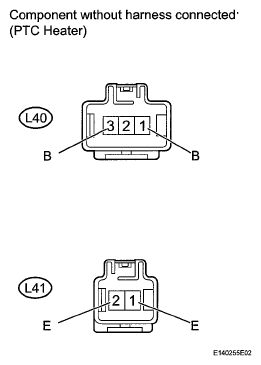

- Disconnect the L40 and L41 PTC heater connectors
- Measure the resistance according to the value(s) in the table below
Standard resistance
TESTER CONNECTOR SPECIFIED CONDITION CHARTTester Connection Condition Specified Condition L40-1 (B) - L41-1 (E) Always Below 1 Ω L40-3 (B) - L41-2 (E)
NG: REPLACE PTC HEATER (See REMOVAL )
OK: Go to Next Step
- CHECK HARNESS AND CONNECTOR (AIR CONDITIONING AMPLIFIER - BODY GROUND)
- Disconnect the L76 air conditioning amplifier connector.
- Measure the resistance according to the value(s) in the table below
Standard resistance
TESTER CONNECTOR SPECIFIED CONDITION CHARTTester Connection Condition Specified Condition L76-27 (PTC1) - Body ground Always Below 1 Ω L76-35 (PTC3) - Body ground
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: REPLACE AIR CONDITIONING AMPLIFIER (See REMOVAL )
