How To Determine Bolt Strength

Bolt Type

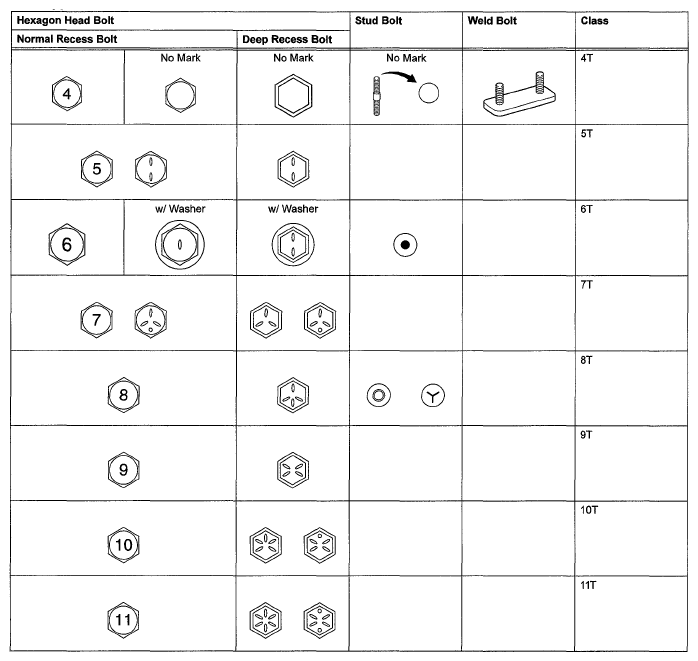

Fig 1: Bolts Specification Chart
G05772822Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
