FUEL PUMP (for High Pressure): Components

Fig 1: Fuel Pump Replacement Components With Torque Specifications (1 Of 2)
G05772977Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

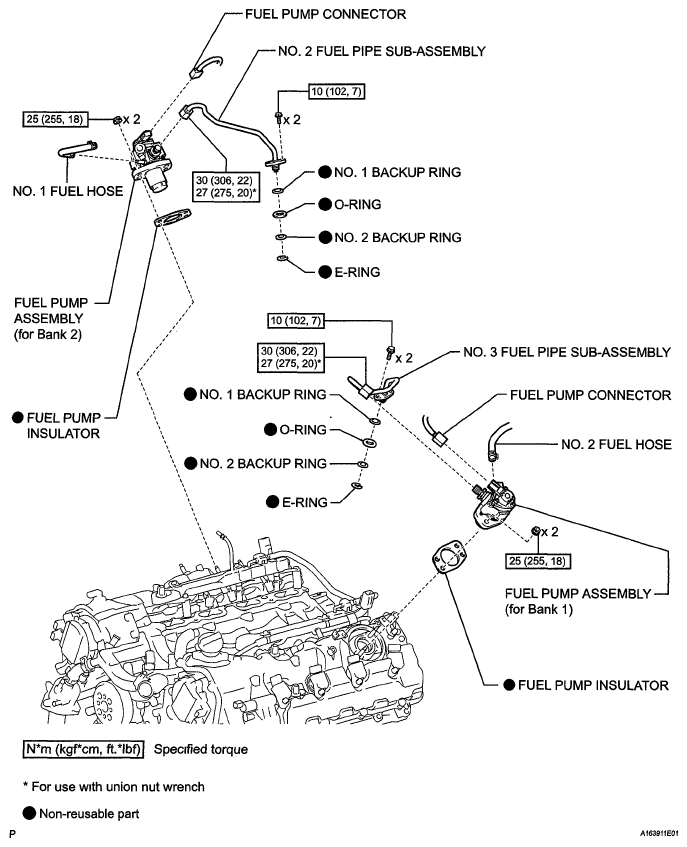

Fig 2: Fuel Pump Replacement Components With Torque Specifications (2 Of 2)
G05773019Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
