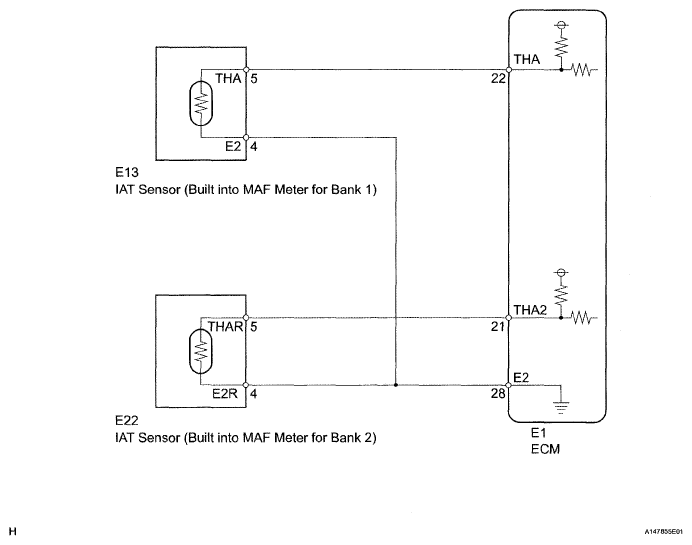

DTC P0097: Intake Air Temperature Sensor 2 Circuit Low; DTC P0098: Intake Air Temperature Sensor 2 Circuit High; DTC P0112: Intake Air Temperature Circuit Low Input; DTC P0113: Intake Air Temperature Circuit High Input: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
