Air Cleaner And Hose: Components

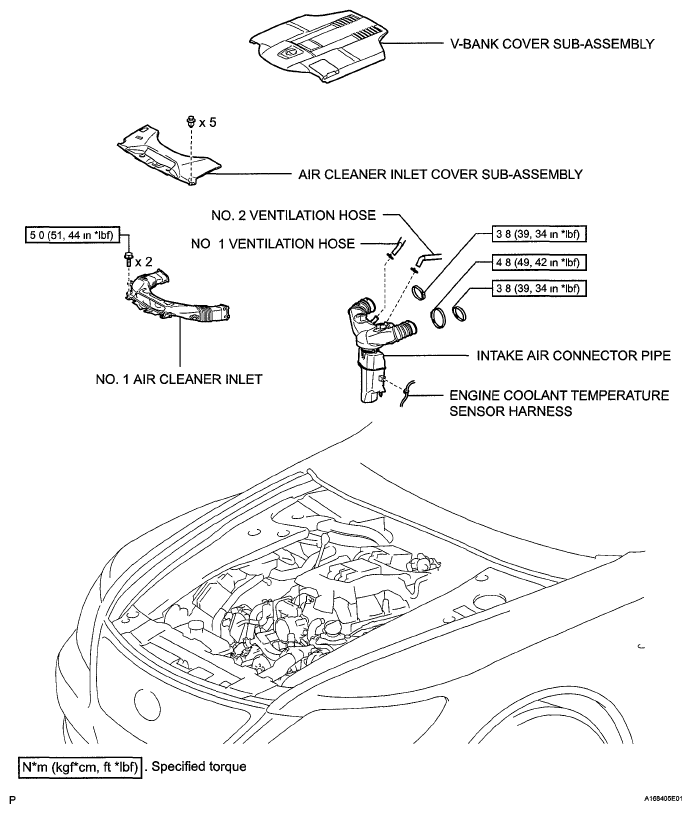

Fig 1: Air Cleaner And Hose Replacement Components With Torque Specifications (1 Of 2)
G05773198Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

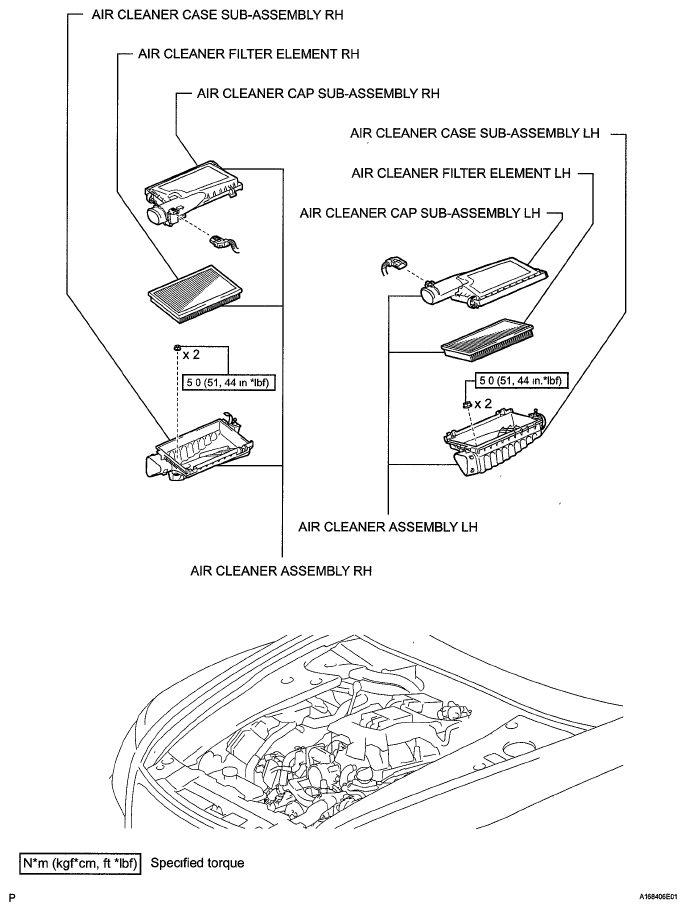

Fig 2: Air Cleaner And Hose Replacement Components With Torque Specifications (2 Of 2)
G05773199Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
