FUEL INJECTOR (for Port Injection): Components

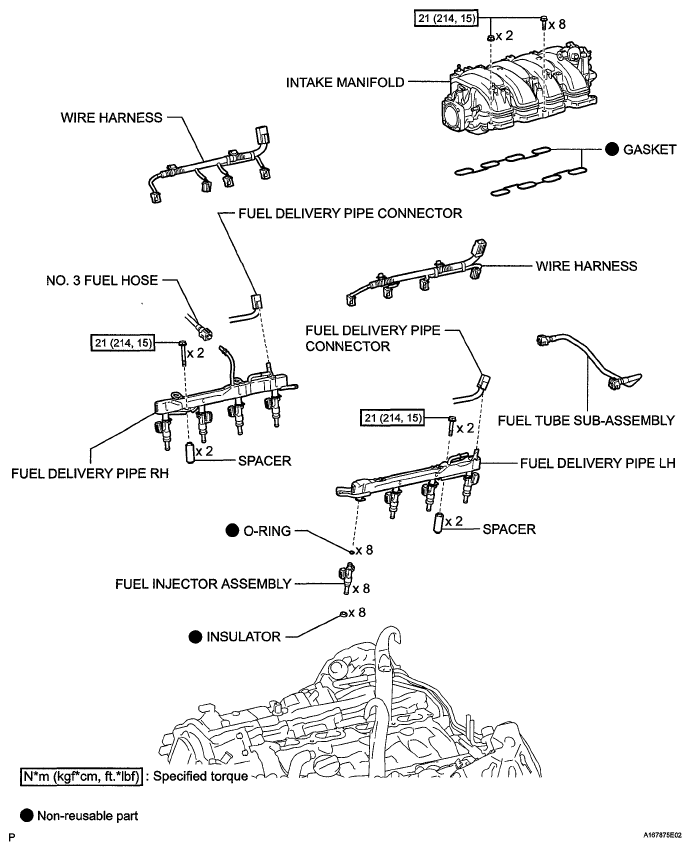

Fig 1: Fuel Injector Replacement Components With Torque Specifications (For Port Injection)

G05772857

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
