Exhaust Pipe: Components

Fig 1: Exhaust Pipe Replacement Components With Torque Specifications (1 Of 3)
G05773263Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

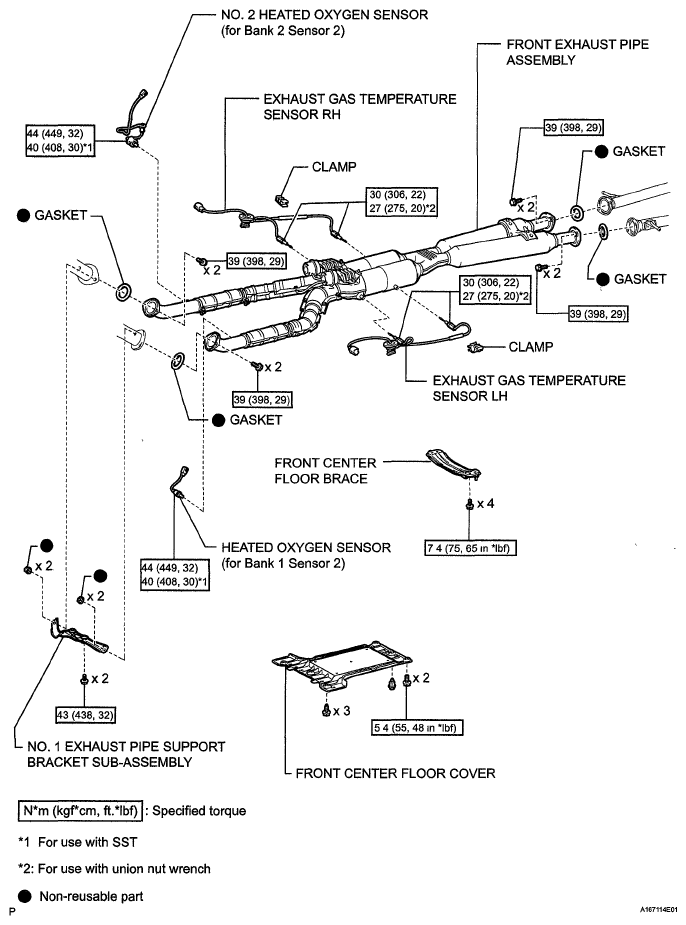

Fig 2: Exhaust Pipe Replacement Components With Torque Specifications (2 Of 3)
G05773264Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

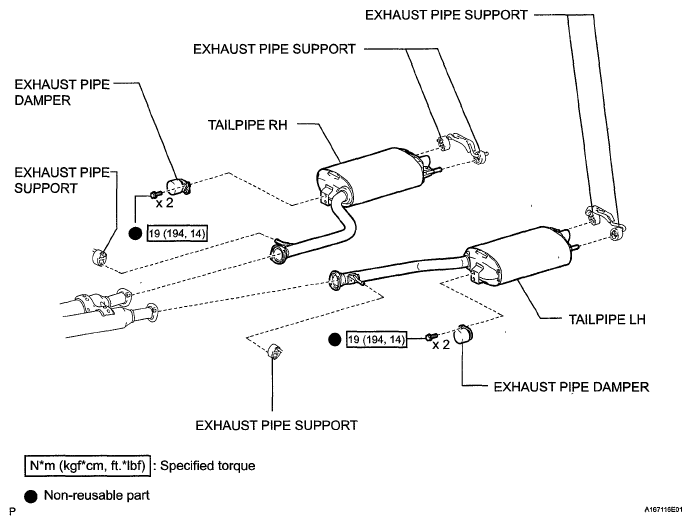

Fig 3: Exhaust Pipe Replacement Components With Torque Specifications (3 Of 3)
G05773265Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
