Exhaust Manifold: Components

Fig 1: Exhaust Manifold Replacement Components With Torque Specifications (1 Of 2)
G05773243Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

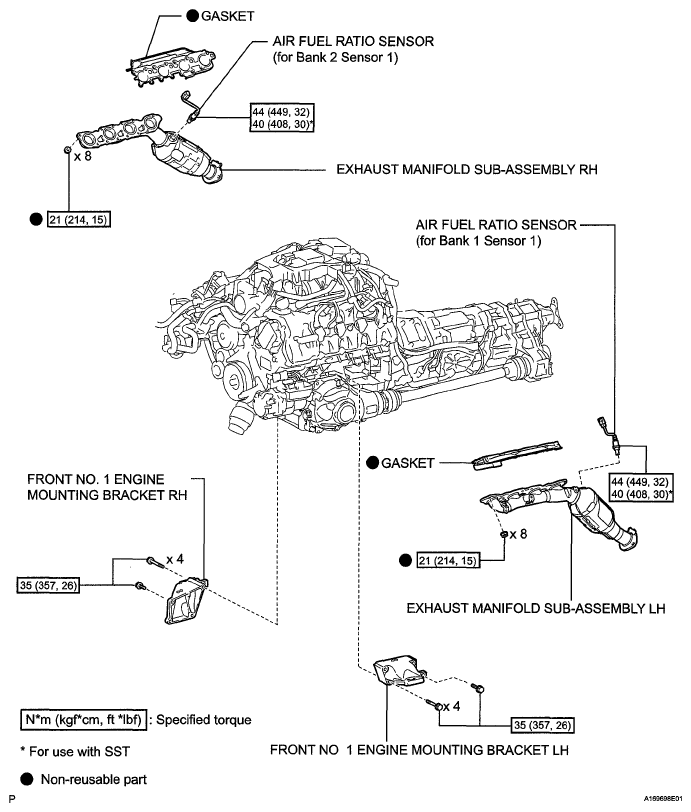

Fig 2: Exhaust Manifold Replacement Components With Torque Specifications (2 Of 2)
G05773244Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
