Water Pump: Components

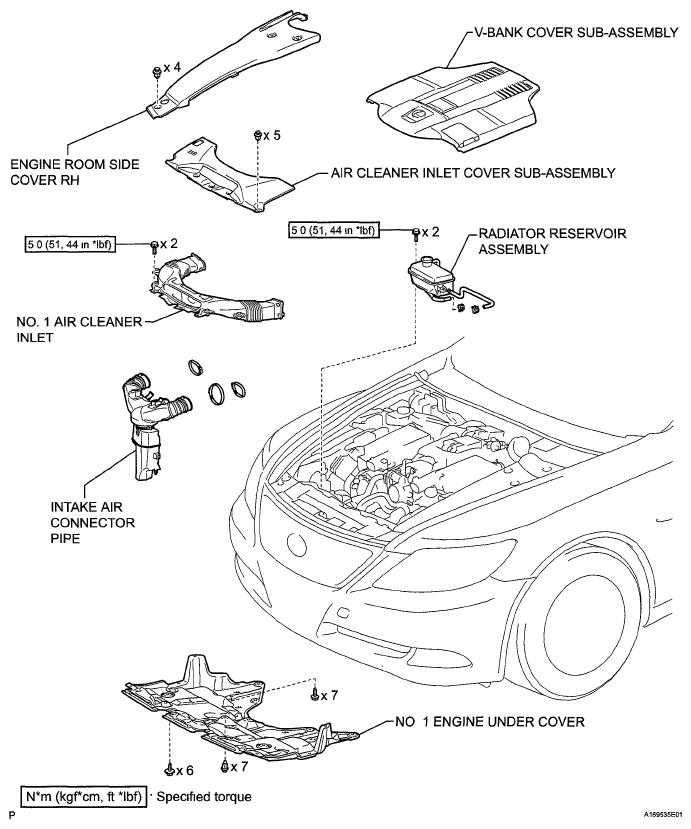

Fig 1: Water Pump Replacement Components With Torque Specifications (1 Of 2)
G05773318Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

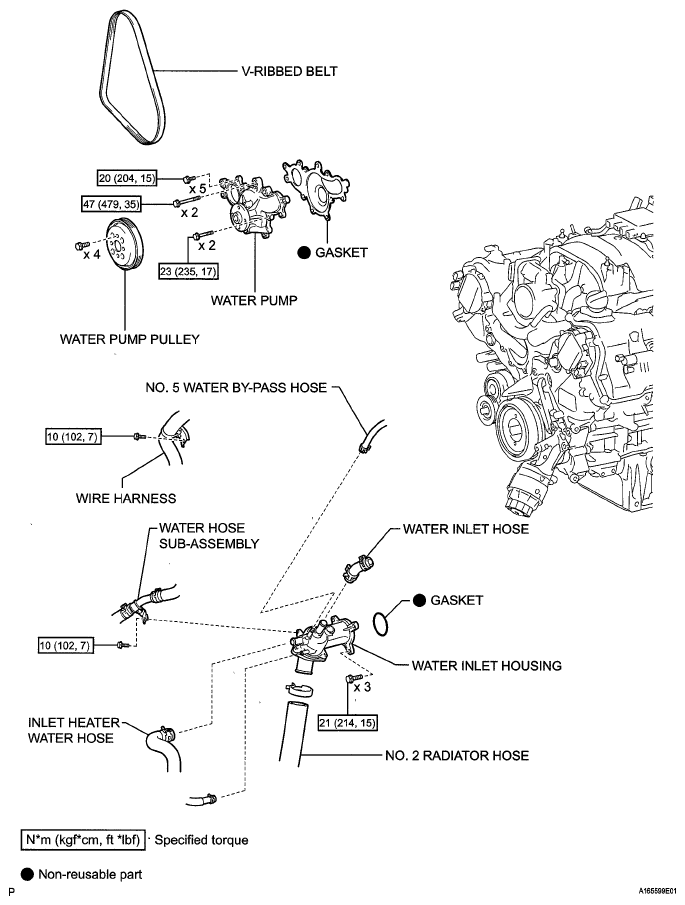

Fig 2: Water Pump Replacement Components With Torque Specifications (2 Of 2)
G05773319Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
