Cooling System (Mechanical): Cooling: Thermostat: Components

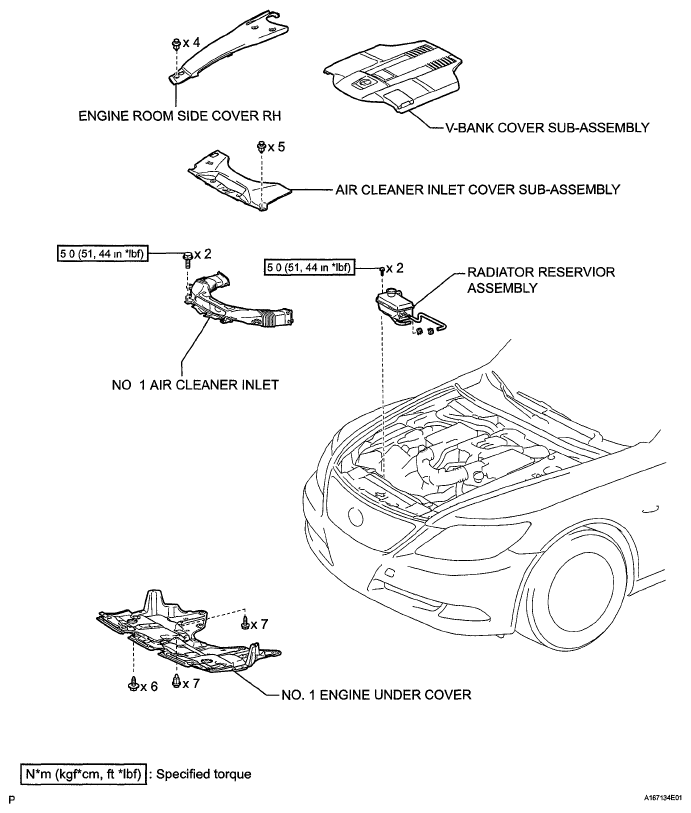

Fig 1: Thermostat Replacement Components With Torque Specifications (1 Of 2)
G05773338Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

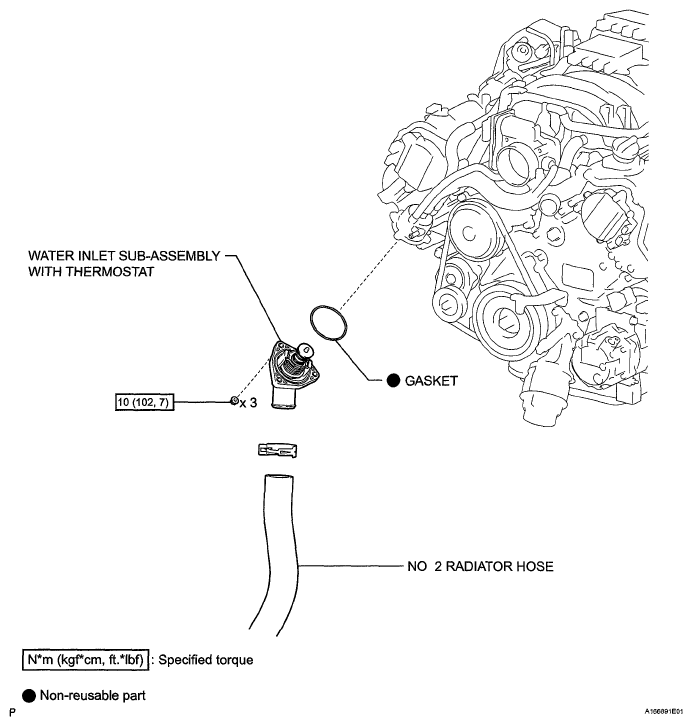

Fig 2: Thermostat Replacement Components With Torque Specifications (2 Of 2)
G05773339Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
