Instrument Panel Safety Pad: Installation

HINT:

A bolt without a torque specification is shown in the standard bolt chart (see SPECIFIED TORQUE FOR STANDARD BOLTS )

  1. INSTALL NO. 3 INSTRUMENT PANEL STAY
    1. Attach the 5 claws to install the 5 stays.
    Fig 1: Identifying No. 3 Instrument Panel Stay
    G04952353Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY
    1. Attach the 5 claws to install the safety pad.
    2. Install the 5 bolts and nut
    3. Install the 2 passenger airbag bolts.

      Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)

      Fig 2: Identifying Passenger Airbag Bolts With Claws
      G04952383Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Connect the connectors and clamps.
    5. Attach the 2 claws to install the sensor

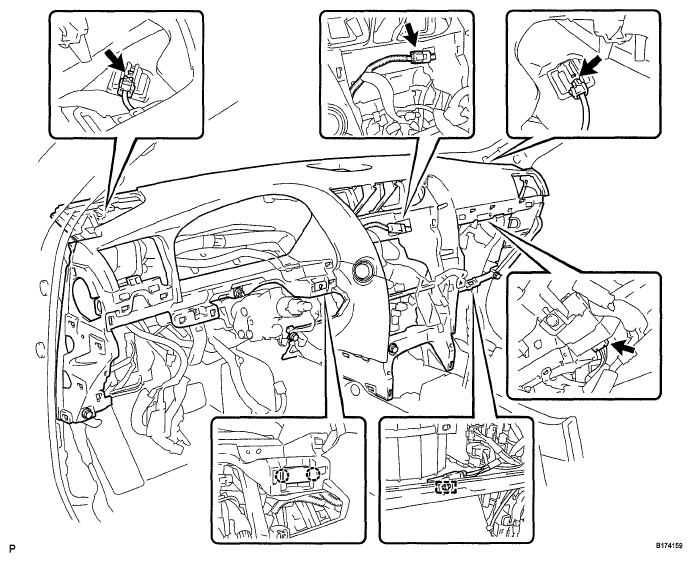

    Fig 3: Locating Instrument Panel Connector
    G05784716Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL FRONT NO. 3 SPEAKER ASSEMBLY  (See INSTALLATION )
  4. INSTALL NO. 1 SPEAKER HOLE COVER  (See INSTALLATION )
  5. INSTALL FRONT NO. 2 SPEAKER ASSEMBLY (for LH Side)  (See INSTALLATION )
  6. INSTALL NO. 1 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY  (See INSTALLATION )
  7. INSTALL FRONT NO. 2 SPEAKER ASSEMBLY (for RH Side)  (See INSTALLATION )
  8. INSTALL NO. 2 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY  (See INSTALLATION )
  9. INSTALL NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY
    1. Connect the connector
    2. Hold the bottom with your left hand and side with your right hand Then insert the register into the instrument panel opening
      NOTE: Do not let the claws on the sides of the register contact the instrument panel surface.
      Fig 4: Inserting Register Into Instrument Panel
      G05784752Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT.

      Insert the bottom of the register first.

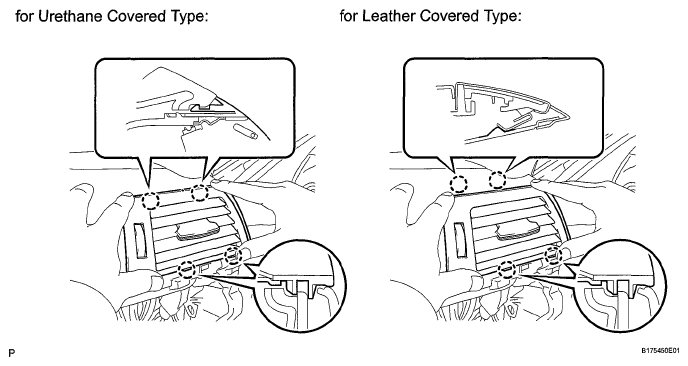

      Fig 5: Inserting Bottom Of Register
      G05784753Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Press in the 4 claws simultaneously to install the register
  10. INSTALL NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY
    1. Connect the connector
    2. Hold the bottom with your right hand and side with your left hand Then insert the register into the instrument panel opening
      NOTE: Do not let the claws on the sides of the register contact the instrument panel surface.
      Fig 6: Inserting Register Into Instrument Panel
      G05784754Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT

      Insert the bottom of the register first.

    3. Press in the 4 claws simultaneously to install the register.

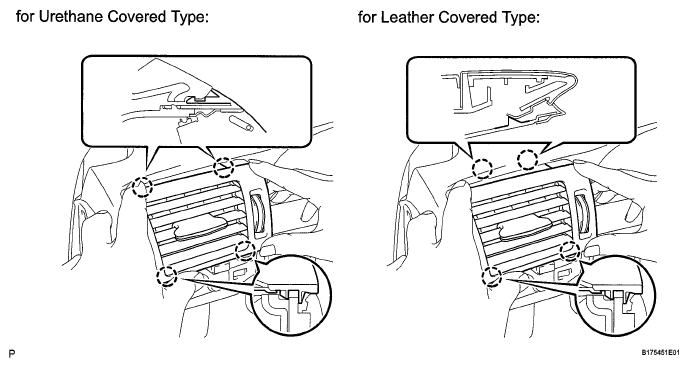

    Fig 7: Inserting Bottom Of Register First
    G05784755Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. INSTALL FRONT PILLAR GARNISH LH  (See INSTALLATION )
  12. INSTALL FRONT PILLAR GARNISH RH  (See INSTALLATION )
  13. INSTALL MULTI-DISPLAY ASSEMBLY WITH BRACKET  (See INSTALLATION )
  14. INSTALL DISPLAY AND NAVIGATION ASSEMBLY WITH BRACKET (for HDD)  (See INSTALLATION )
  15. INSTALL RADIO RECEIVER ASSEMBLY WITH BRACKET  (See INSTALLATION )
  16. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY
    1. Connect the connector and clamp, and install the compartment door
    2. Install the 5 screws
    Fig 8: Identifying Glove Compartment Door Screws
    G04952348Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. INSTALL NO. 2 INSTRUMENT CLUSTER MOULDING
    1. Attach the 5 clips to install the moulding
      2. Fig 9: Identifying No. 2 Instrument Cluster Moulding Clips
      G04952388Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. INSTALL FRONT PASSENGER SIDE KNEE AIRBAG ASSEMBLY  (See INSTALLATION )
  19. INSTALL LOWER INSTRUMENT PANEL  (See INSTALLATION )
  20. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
    1. Connect the connector
    2. Attach the 4 claws to install the under cover
    Fig 10: Identifying No. 2 Instrument Panel Under Cover Claws
    G04952389Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. INSTALL INSTRUMENT SIDE PANEL RH
    1. Attach the 6 clips to install the side panel.
      2. Fig 11: Identifying Instrument Side Panel RH Clips
      G04952390Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. INSTALL DRIVER SIDE KNEE AIRBAG ASSEMBLY  (See INSTALLATION )
  23. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
    1. Connect the connectors and clamp
    2. Attach the 2 claws
    3. Install the under cover with the 2 screws.
    Fig 12: Identifying No. 1 Instrument Panel Under Cover With Screws
    G05784760Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  24. INSTALL COMBINATION METER ASSEMBLY
    1. Connect the connector.
    2. Install the combination meter with the 4 screws
    Fig 13: Identifying Combination Meter Screws
    G05784706Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  25. INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
    1. Hold the back of the finish panel trip switch with your right hand, and connect the connector with your left hand.
      Fig 14: Disconnecting Finish Panel Trip Switch Connector
      G05784705Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Hold the back of the finish panel light control rheostat with your right hand, and connect the connector with your left hand.
      Fig 15: Disconnecting Light Control Rheostat Connector With Left Hand
      G05784704Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Insert the top of the finish panel into the instrument panel opening, and hold the top center with your left hand.
      Fig 16: Holding Top Center With Your Left Hand
      G05784764Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Press up the lower right side of the finish panel to attach the clip.
      NOTE: If the trip switch is pressed to attach the clip, the switch will be damaged.
      Fig 17: Pressing Up Lower Right Side Of Finish Panel To Attach Clip
      G05784765Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Press up the lower left side of the finish panel to attach the clip.
      NOTE: If the light control rheostat switch is pressed to attach the clip, the switch will be damaged.
      Fig 18: Pressing Up Lower Left Side Of Finish Panel To Attach Clip
      G05784766Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Install the 2 clips.
    Fig 19: Identifying Instrument Cluster Finish Panel Clips
    G05784701Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  26. INSTALL NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY
    1. Connect the connectors.
    2. Attach the 5 clips and claw to install the safety pad.
    3. Install the 2 screws.
      Fig 20: Identifying Instrument Panel Safety Pad Clips And Claw With Screws
      G05784700Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Attach the claw to install the cover.
    Fig 21: Identifying No. 1 Instrument Panel Safety Pad Claw
    G04952392Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  27. INSTALL NO. 1 INSTRUMENT CLUSTER MOULDING
    1. Attach the 2 clips to install the moulding
    Fig 22: Identifying No. 1 Instrument Cluster Moulding Clips
    G05784698Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  28. INSTALL INSTRUMENT SIDE PANEL LH
    1. Attach the 6 clips to install the side panel
      2. Fig 23: Identifying Instrument Side Panel LH Clips
      G04952395Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  29. INSTALL TURN SIGNAL SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY  (See INSTALLATION )
  30. INSTALL STEERING COLUMN COVER (w/o Driver Monitor Camera)  (See INSTALLATION )
  31. INSTALL STEERING COLUMN COVER (w/ Driver Monitor Camera)  (See INSTALLATION )
  32. INSTALL STEERING WHEEL ASSEMBLY  (See INSTALLATION )
  33. INSTALL STEERING PAD ASSEMBLY  (See INSTALLATION )
  34. INSTALL LOWER NO. 2 STEERING WHEEL COVER  (See INSTALLATION )
  35. INSTALL SWITCH AND VOLUME CASE  (See INSTALLATION )
  36. INSTALL CONSOLE BOX ASSEMBLY
    1. Attach the 2 claws.
    2. Connect the connectors.
    3. Install the console box with the 4 bolts and 2 screws.
    Fig 24: Locating Console Box Bolts And Screws With Claws
    G04946862Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  37. INSTALL LOWER CONSOLE COVER
    1. Install the cover.
  38. INSTALL REAR CONSOLE END PANEL SUB-ASSEMBLY
    1. Connect the connector.
    2. Attach the 5 clips and 2 claws to install the end panel.
    Fig 25: Identifying Rear Console End Panel Clips And Claws
    G04946874Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  39. INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY
    1. Connect the connector.
    2. Attach the 2 clips to install the panel.
    Fig 26: Identifying Upper Console Panel Clips
    G04946875Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  40. INSTALL REAR UPPER CONSOLE PANEL
    1. Connect the connectors.
    2. Attach the 6 clips.
    3. Install the panel with the 2 screws.
    Fig 27: Identifying Rear Upper Console Panel Clips With Screws
    G04946876Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  41. INSTALL NO. 3 BOX PANEL
    1. Attach the 4 claws to install the box panel.
    Fig 28: Identifying No. 3 Box Panel Claws
    G04946858Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  42. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY
    1. Install the shift lever knob and twist it in the direction indicated by the arrow.
    Fig 29: Installing Shift Lever Knob
    G05784777Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  43. INSTALL INSTRUMENT PANEL FINISH PANEL END RH
    1. Attach the 8 clips and claw to install the finish panel end
    Fig 30: Identifying Instrument Panel Finish Panel RH Clips
    G04946879Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  44. INSTALL INSTRUMENT PANEL FINISH PANEL END LH
    1. Attach the 8 clips and claw to install the finish panel end
      2. Fig 31: Identifying Instrument Panel Finish Panel LH Clips
      G04946856Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  45. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
    NOTE:
    • Reset the AUTO TILT AWAY function setting to the previous condition by changing the customize parameter (see CUSTOMIZE PARAMETERS ).
    • When disconnecting the cable, some systems need to be initialized after the cable is reconnected (see INITIALIZATION ).
  46. INSTALL BATTERY SERVICE HOLE COVER LH  (See INSTALLATION )
  47. INSTALL LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY  (See INSTALLATION )
  48. CHECK SRS WARNING LIGHT
    1. Check the SRS warning light (see DIAGNOSIS SYSTEM ).
