Clock System: Adjustment

START ADJUSTMENT
1. Press "INFO".

  Fig 1: Screen Display - INFO
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Press "Adjust Clock".

SCREEN DESCRIPTION

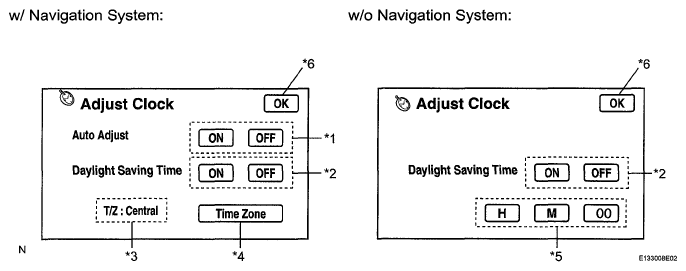

Fig 2: Screen Display - Adjust Clock (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Screen Display - Adjust Clock (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Screen Display

DISPLAY CONTENTS

Display	Contents
"Auto Adjust" switch/*1	ON Performs automatic correction based on GPS information OFF Does not perform automatic correction
"Daylight Saving Time" switch/*2	ON Daylight saving time is set OFF Daylight saving time is not set
T/Z Central/*3	Displays current time zone
"Time Zone" switch/*4	Changes screen to time zone setting screen
"H" switch, "M" switch, "00" switch/*5	Sets clock
"OK" switch/*6	Ends "Adjust Clock" mode

ADJUST CLOCK (w/ Navigation System)
1. When planning to use GPS correction, press the "Auto Adjust" "ON" switch.
2. When planning to use daylight saving time, press the "Daylight Saving Time" "ON" switch.

  Fig 4: Screen Display - Auto Adjust
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Set time zone
  1. Press "Time Zone".
  2. Select a time zone
  3. Press "Other" to set a customized time zone.
    HINT:
    - To set a time ahead of GMT, press "up". Each press of "up" sets the time 30 minutes ahead.
    - To set a time behind GMT, press "down". Each press of "down" sets the time 30 minutes behind
4. After settings are complete, press "OK".
Fig 5: Screen Display - Time Zone
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ADJUST CLOCK (w/o Navigation System)
1. When planning to use daylight saving time, press the "Daylight Saving Time" "ON" switch.

  Fig 6: Screen Display - Daylight Saving Time
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. To increase the hours, press "H". To increase the minutes, press "M"
3. Press "00" to set the time to the beginning of an hour
  HINT

  When performed with the minutes at 0 to 29, the time is set backward, and with the minutes at 30 to 59, the time is set forward. For example, if the time is between 1 00 to 1 -29, the time is set to 1.00, and if the time is between 1 30 to 1 59, the time is set to 2.00
4. After settings are complete, press "OK"
Fig 7: Screen Display - Daylight Saving Time
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
