Home >> Lexus >> 2008 >> LS 600hL >> Repair and Diagnosis >> Body & Frame >> Exterior/Interior Trim >> Exterior >> Rear Door Window Frame Moulding >> Components

Rear Door Window Frame Moulding: Components

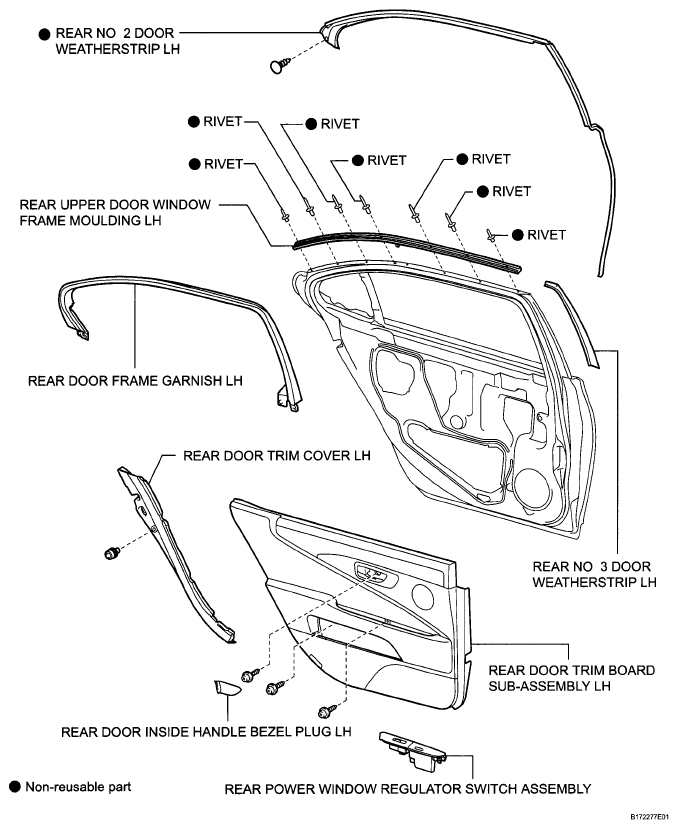

Fig 1: Identifying Rear Door Window Frame Moulding Components

G05786774

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
