Parts Location — 2008 Lexus LS 600hL Service Manual ~ LEMON Manuals

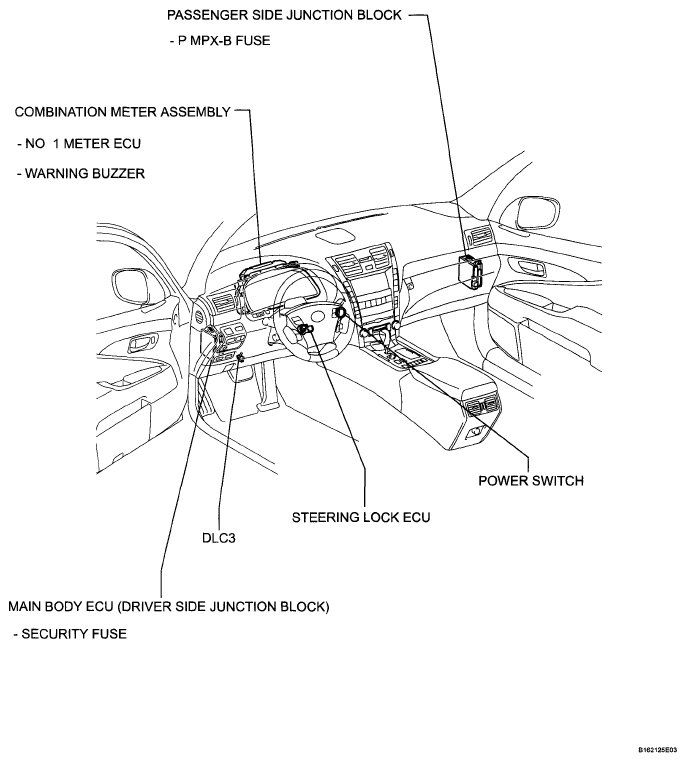

Fig 1: Identifying Door Lock Parts Location (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

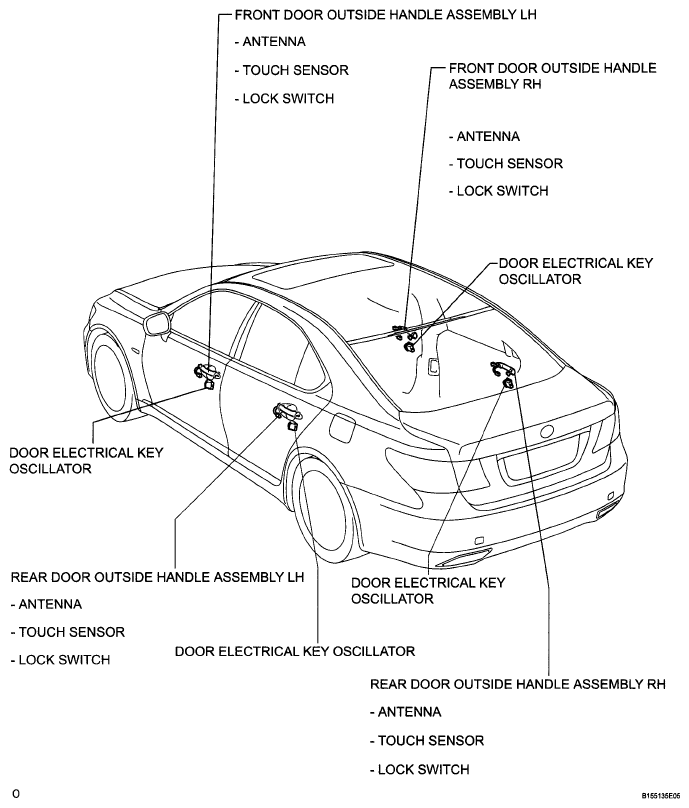

Fig 2: Identifying Door Lock Parts Location (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

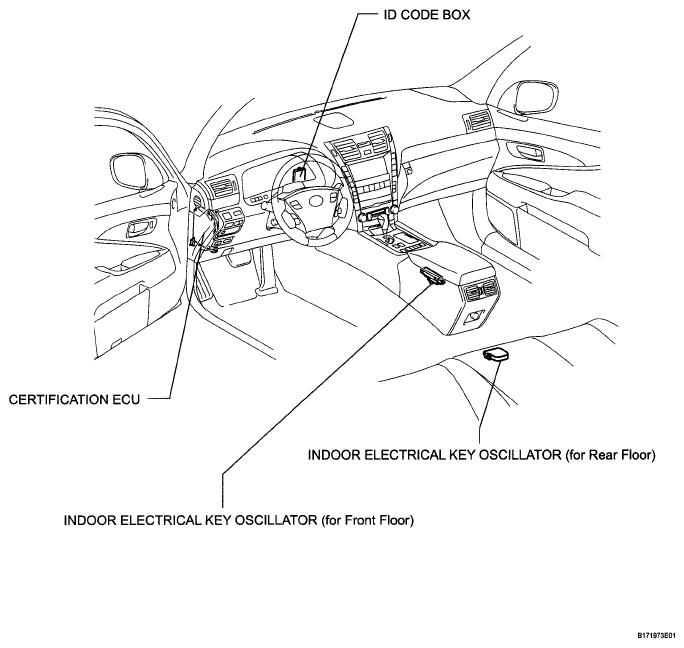

Fig 3: Identifying Door Lock Parts Location (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

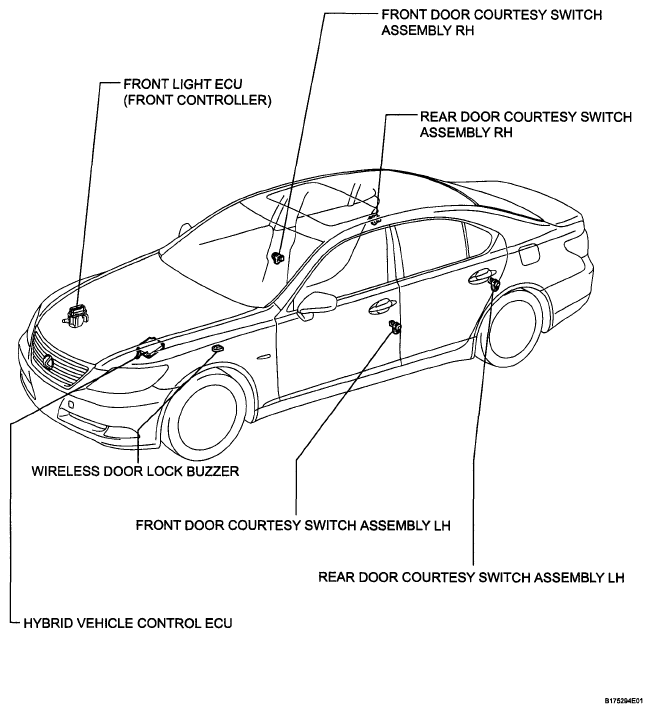

Fig 4: Identifying Door Lock Parts Location (4 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

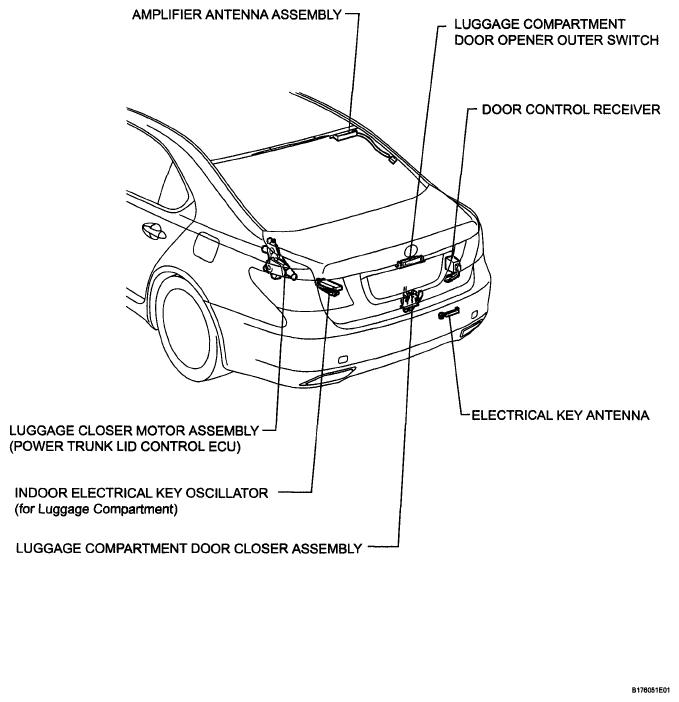

Fig 5: Identifying Door Lock Parts Location (5 Of 6)

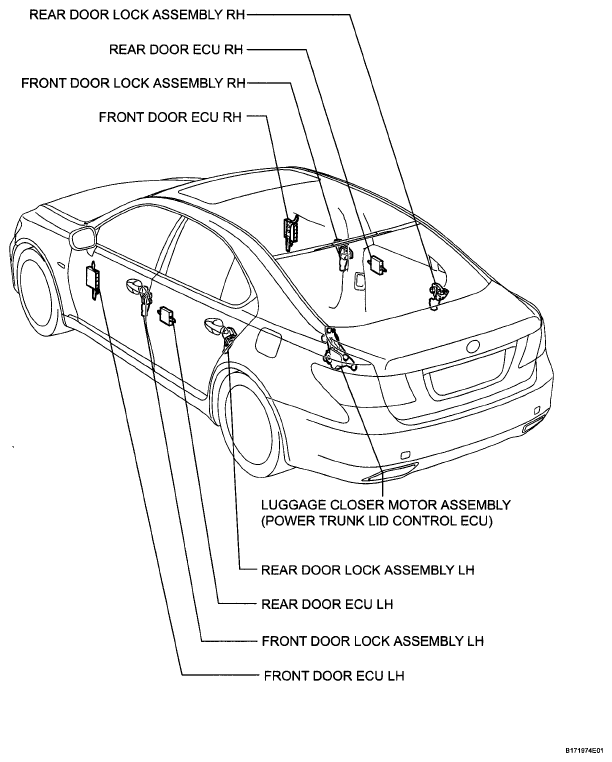

Fig 6: Identifying Door Lock Parts Location (6 Of 6)
