Operation Check

1. INITIAL CHECK FUNCTION
   1. Turn the power switch ON (IG).
   2. After 2 seconds or more have passed, turn the clearance sonar main switch ON Then check the buzzer sounding condition.

      Buzzer sounding:

      1 +/-0.3 sec.

      HINT:

   • If a malfunction is detected in the ultrasonic sensor circuits, the location of the malfunctioning sensor blinks on the display's vehicle graphic. However, after the sensor returns to normal, the display also returns to normal.
   • When the power switch is turned ON (IG) while the clearance sonar main switch is ON, the buzzer will not sound.
   Fig 1: Sonar Main Switch - Blinking Pattern

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. MALFUNCTION OF MULTI-INFORMATION DISPLAY
   1. Ultrasonic sensor open circuit

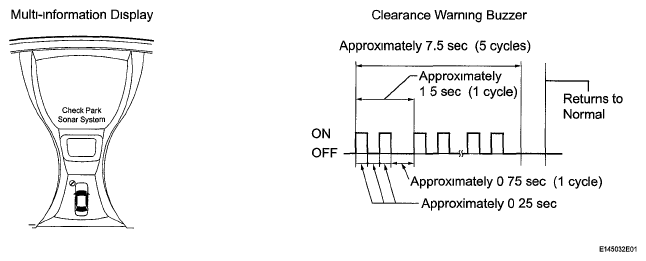

      1. If there is an open circuit between the ultrasonic sensor and the ECU or a sensor is malfunctioning, the malfunction is displayed as shown in the illustration.
         Fig 2: Multi-Information Display Screen Of - Check Sonar System

         Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

         HINT:

      • The example shows an open circuit in the front corner No 1 ultrasonic sensor LH.
      • If a sensor has an open circuit, "Check Park Sonar System" is displayed. Refer to "open circuit in front sensor is displayed as a result or self-check" on the Problem Symptoms Table to inspect it.
   2. Ultrasonic sensor frozen
      1. If a sensor is covered with foreign matter, such as mud or snow, the affected sensor is displayed as shown in the illustration.
      Fig 3: Multi-Information Display Screen Of - Check Sonar

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

   • The example shows that the front corner No 1 ultrasonic sensor LH is frozen.
   • If "Clean Park Sonar" is displayed, cleaning the foreign matter from the sensor will return the sensor to normal.
3. MALFUNCTION OF MULTI-DISPLAY
   1. Ultrasonic sensor open circuit
      1. If there is an open circuit between the ultrasonic sensor and the ECU or a sensor is malfunctioning, the malfunction is displayed as shown in the illustration.
         Fig 4: Multi-Information Display Screen Of - Check Sonar

         Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

         HINT:

         This example shows an open circuit in the rear corner No. 1 ultrasonic sensor RH.

         • If a sensor has an open circuit, refer to "open circuit in rear sensor is displayed as a result of self-check" on the Problem Symptoms Table to inspect it.
   2. Ultrasonic sensor frozen
      1. If a sensor is covered with foreign matter, such as mud or snow, the affected sensor is displayed as shown in the illustration
         Fig 5: Multi-Information Display Screen Of - Clean Sonar

         Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

         HINT:

      • The example shows that the front corner No 1 ultrasonic sensor LH is covered with foreign matter
      • If "Clean sonar" is displayed, cleaning the foreign matter from the sensor will return the sensor to normal
4. DETECTION RANGE MEASUREMENT AND DISPLAY INSPECTION
   NOTE: Make sure the vehicle does not move by applying the parking brake firmly.
   1. Turn the power switch ON (IG).
   2. Move the shift lever to R position to check the front side sensors, rear center sensors and rear corner sensors.
   3. Move the shift lever to D, S and N position to check front side sensors, front corner sensors and front center sensors
   4. Turn the clearance sonar main switch ON.
   5. Move a pole around the sensor to measure the detection range of the sensor.
      NOTE:

      • These detection ranges are applicable when positioning the pole parallel or perpendicular to the ground.
      • The ranges vary depending on the measuring method and type of obstacle (such as walls).
      • For close-range and medium-range detection, the values shown are for when using a pole with a diameter of 60 mm (2.36 in.). For long-range detection, the values shown are for when using a pole with a diameter of 400 mm (15.7 in.).
      • The detection range of the resin bumper and steel bumper are not the same, as their installation positions are slightly different.

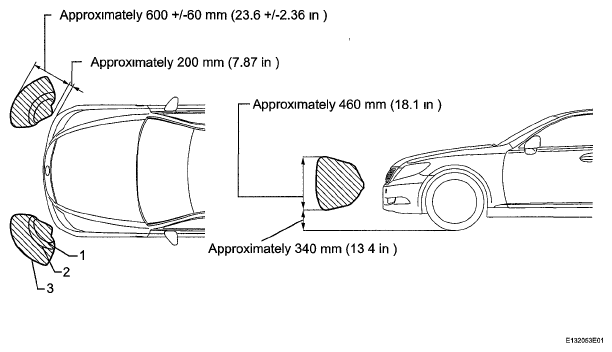

      1. Front center sensors detection range
         Fig 6: Front Center Sensors Detection Range Chart

         Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

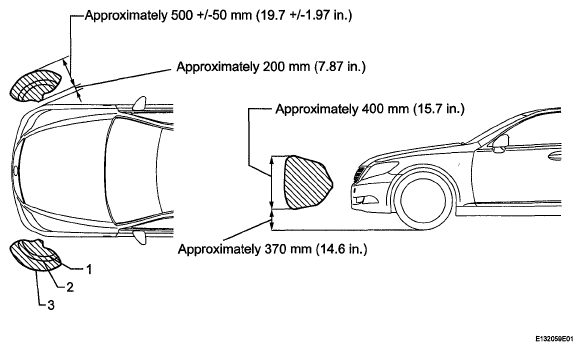

      2. Front corner sensors detection range
         Fig 7: Front Corner Sensors Detection Range Chart

         Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

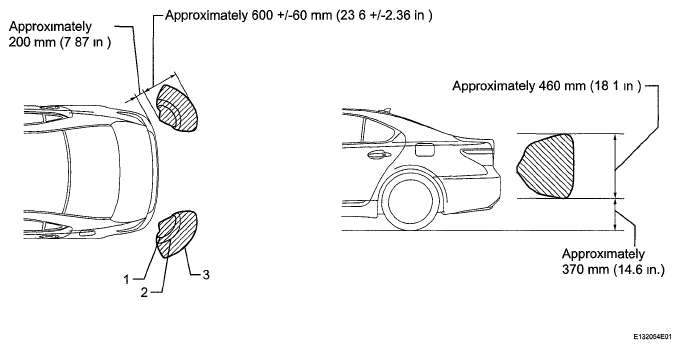

      3. Front side sensors detection range
         Fig 8: Front Side Sensors Detection Range Chart

         Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      4. Rear center sensors detection range
         Fig 9: Rear Center Sensors Detection Range Chart

         Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      5. Rear corner sensors detection range
      Fig 10: Rear Corner Sensors Detection Range Chart

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   6. When the ultrasonic sensors have detected an obstacle, check the multi-information display, multi-display and buzzer sounds with the clearance sonar main switch ON

      Operation condition:

1. Check the buzzer sounds with the clearance sonar main switch ON.
   Fig 11: Blinking Pattern Of Buzzer Sound

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Front detection range

   FRONT DETECTION RANGE CHART



   Detection	Distance
   1 Close-range detection	Within 300 +/-30 mm (11 8 +/-1 18 in)
   2 Medium-range detection	300 +/-30 to 375 +/-40 mm (11 8 +/-1 18 to 14 8 +/-1 57 in)
   3 Long-range detection	375 +/-40 to 600 +/-60 mm (14 8 +/-1 57 to 23 6 +1-2 36 in)

   Rear detection range

   REAR DETECTION RANGE CHART



   Detection	Distance
   1 Close-range detection	Within 250 +/-30 mm (9 84 +/-1 18 in)
   2 Medium-range detection	250 +/-30 to 375 +/-40 mm (9 84 +/-1 18 to 14 8 +/-1 57 in)
   3 Long-range detection	375 +/-40 to 600 +/-60 mm (14 8 +/-1 57 to 23 6 +1-2 36 in)

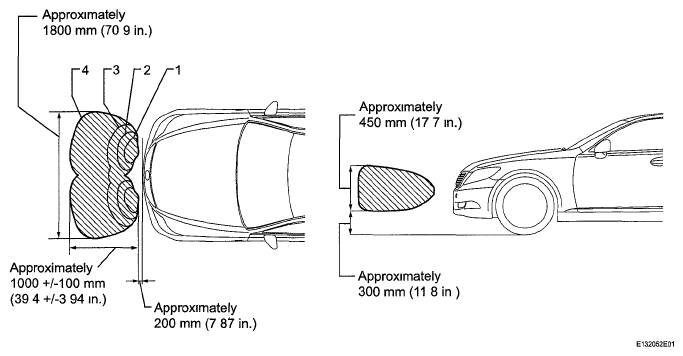

   Front center detection range

   FRONT CENTER DETECTION RANGE CHART



   Detection	Distance
   1 Close-range detection	Within 300 +/-30 mm (11 8 +/-1 18 in)
   2 Medium-range detection	300 +/-30 to 375 +/-40 mm (11 8 +/-1 18 to 14 8 +/-1 57 in)
   3 Long-range detection	375 +/-40 to 500 +/-50 mm (14 8 +/-1 57 to 19 7 +/-1 97 in)
   4 Maximum long-range detection	500 +/-50 to 1000 +/-100 mm (19 7 +/-1 97 to 39 4 +/-3 94 in)

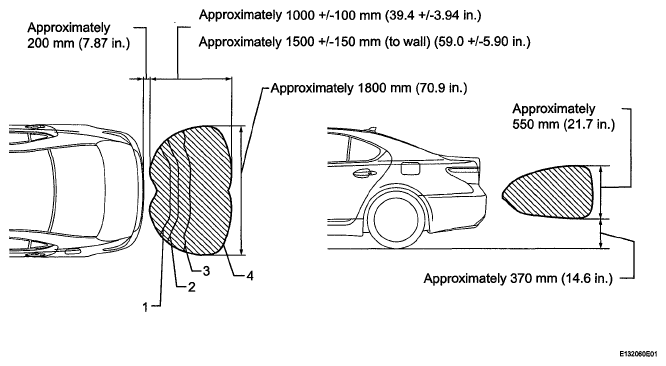

   Rear center detection range

   REAR CENTER DETECTION RANGE CHART



   Detection	Distance
   1 Close-range detection	Within 350 +/-40 mm (13 8 +/-1 57 in)
   2 Medium-range detection	350 +/-40 to 450 +/-50 mm (13 8 +/-1 57 to 17 7 +/-1 97 in)
   3 Long-range detection	450 +/-50 to 600 +/-60 mm (17 7 +/-1 97 to 23 6 +1-2 36 in)
   4 Maximum long-range detection	600 +/-60 to 1000 +/-100 mm (23 6 +1-2 36 to 39 4 +/-3 94 in) 600 +/-60 to 1500 +/-150 mm (23 6 +1-2 36 to 59 1 +/-5 91 in) (To the wall)

   Front side detection range

   FRONT SIDE DETECTION RANGE CHART



   Detection	Distance
   1 Close-range detection	Within 300 +/-30 mm (11 8 +/-1 18 in)
   2 Medium-range detection	300 +/-30 to 375 +/-40 mm (11 8 +/-1 18 to 14 8 +/-1 57 in)
   3 Long-range detection	375 +/-40 to 500 +/-50 mm (14 8 +/-1 57 to 19 7 +/-1 97 in)

   HINT:

   Ultrasonic waves are used to measure the detection range However, the detection range may vary depending on the ambient temperature.

2. Check the multi-display, multi-information display and buzzer, when the front corner sensors and front center sensors have detected an obstacle.

   Operation condition:

   OPERATION CONDITION CHART



   Power Switch	Clearance Sonar Main Switch	Shift Lever Position	Vehicle Speed
   ON (IG)	ON	D, S, N	9 km/h (5 mph) or less

   Fig 12: Identifying Front Center Sensor Range Detection Position

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Multi-information display

   MULTI-INFORMATION DISPLAY CHART



   Detection Range	Buzzer	Number of bars displayed
   1 Close-range detection	Sounds continuously	1 (blinking)
   2 Medium-range detection	Sounds intermittently (ON 75 msec / OFF 75 msec)	2 (illuminated)
   3 Long-range detection	Sounds intermittently (ON 150 msec /OFF 150 msec)	3 (illuminated)
   4 Maximum long-range detection	Sounds intermittently (ON 150 msec /OFF 650 msec)	4 (illuminated)

   Fig 13: Identifying Front Center Sensor Range Detection Position

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Multi-display

   MULTI-INFORMATION DISPLAY CHART



   Detection Range	Buzzer	Number of bars displayed
   1 Close-range detection	Sounds continuously	1 (red illumination)
   2 Medium-range detection	Sounds intermittently (ON 75 msec / OFF 75 msec)	2 (yellow illumination)
   3 Long-range detection	Sounds intermittently (ON 150 msec /OFF 150 msec)	3 (yellow illumination)
   4 Maximum long-range detection	Sounds intermittently (ON 150 msec /OFF 650 msec)	4 (yellow illumination)

   HINT:

   Ultrasonic waves are used to measure the detection range. However, the detection range may vary depending on the ambient temperature.

3. Check the multi-display, multi-information display and buzzer, when the rear center sensors and rear corner sensors have detected an obstacle.

   Operation condition:

   OPERATION CONDITION CHART



   Power Switch	Clearance Sonar Main Switch	Shift Lever Position
   ON (IG)	ON	R position

   Fig 14: Identifying Rear Corner Sensors Range Detection Position

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Multi-information display

   MULTI-INFORMATION DISPLAY CHART



   Detection Range	Buzzer	Number of bars displayed
   1 Close-range detection	Sounds continuously	1 (blinking)
   2 Medium-range detection	Sounds intermittently (ON 75 msec / OFF 75 msec)	2 (illuminated)
   3 Long-range detection	Sounds intermittently (ON 150 msec /OFF 150 msec)	3 (illuminated)
   4 Maximum long-range detection (for Rear center sensors)	Sounds intermittently (ON 150 msec /OFF 650 msec)	4 (illuminated)

   Fig 15: Identifying Rear Corner Range Detection Position (W/ Rear View Monitor System)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Multi-display

   MULTI-INFORMATION DISPLAY CHART



   Detection Range	Buzzer	Number of bars displayed
   1 Close-range detection	Sounds continuously	1 (red illumination) * Illumination (red)
   2 Medium-range detection	Sounds intermittently (ON 75 msec / OFF 75 msec)	2 (yellow illumination) * Blinking (yellow)
   3 Long-range detection	Sounds intermittently (ON 150 msec/OFF 150 msec)	3 (yellow illumination) * Blinking (yellow)
   4 Maximum long-range detection (for Rear center sensors)	Sounds intermittently (ON 150 msec /OFF 650 msec)	4 (yellow illumination) * Blinking (yellow)

   HINT:

   Ultrasonic waves are used to measure the detection range. However, the detection range may vary depending on the ambient temperature.

4. Check the multi-display, multi-information display and buzzer, when the front side sensors have detected an obstacle.

Operation condition:

Fig 16: Identifying Front Side Sensors Range Detection Position

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Multi-information display

Fig 17: Identifying Front Side Sensors Range Detection Position (W/ Rear View Monitor System)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Multi-display

HINT:

Ultrasonic waves are used to measure the detection range However, the detection range may vary depending on the ambient temperature.
