Front Active Stabilizer Control Actuator: Components

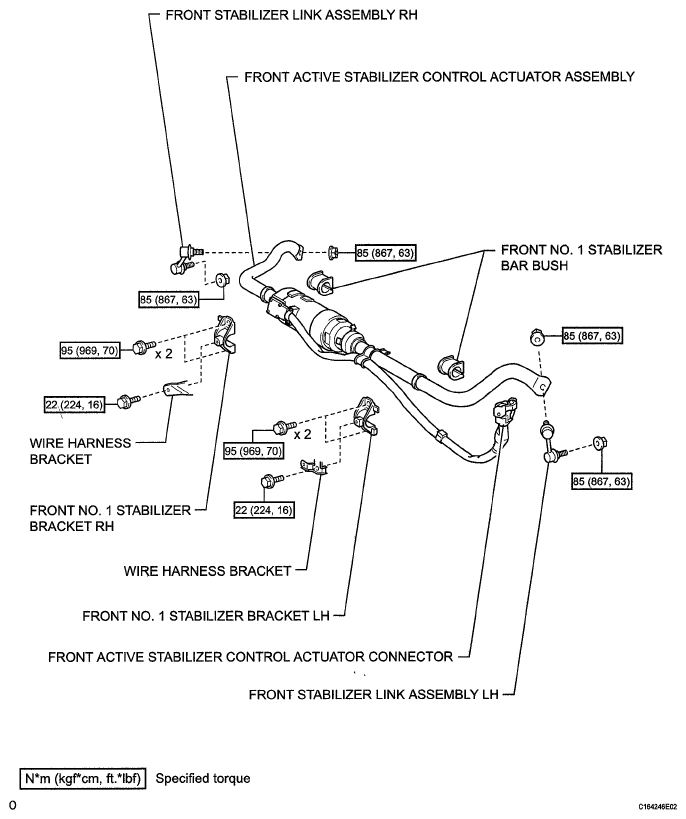

Fig 1: Identifying Front Active Stabilizer Control Actuator Components (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Front Active Stabilizer Control Actuator Replacement Components With Torque Specifications (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Front Active Stabilizer Control Actuator Replacement Components With Torque Specifications (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
