Power Source Mode does not Change: Wiring Diagram

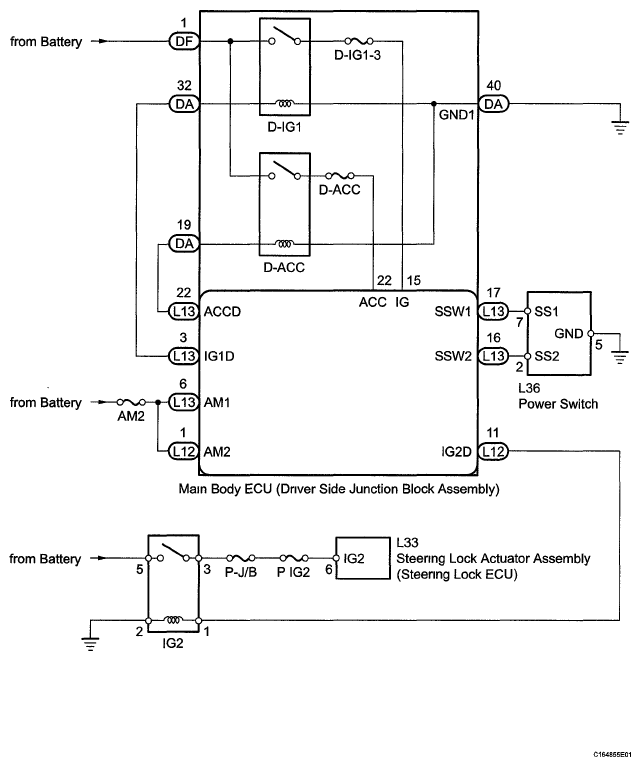

Fig 1: Power Source - Wiring Diagram

G05780693

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
