Heated Steering Wheel System: Notes

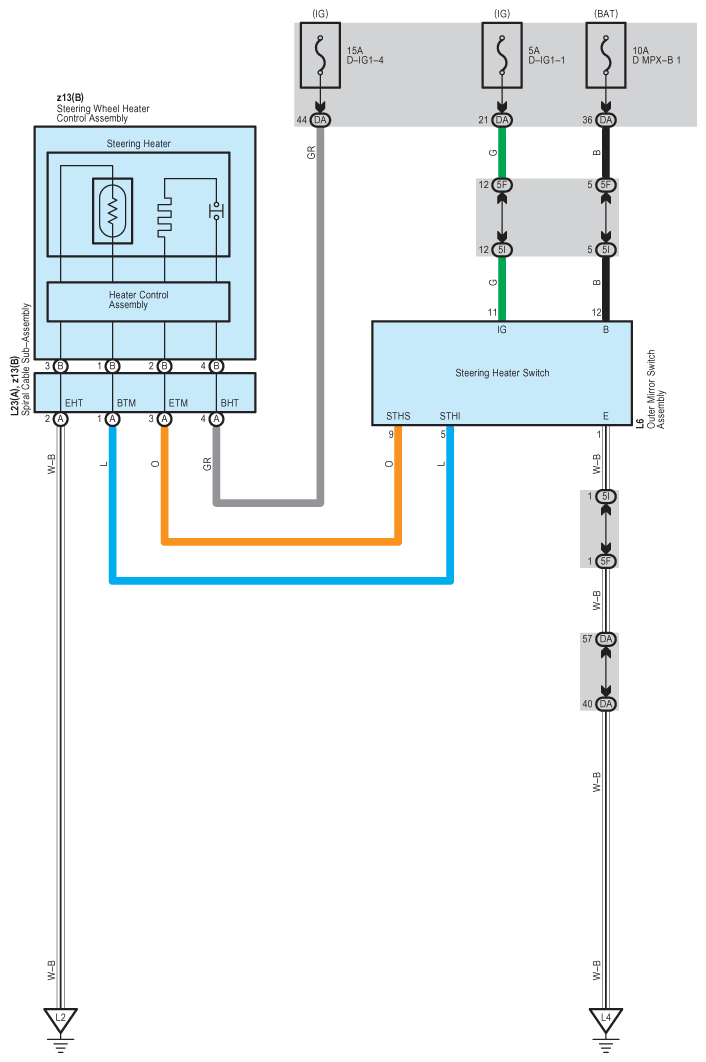

Fig 1: Heated Steering Wheel System - Circuit Diagram

G07593100

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
