Object Recognition Ecu: Components

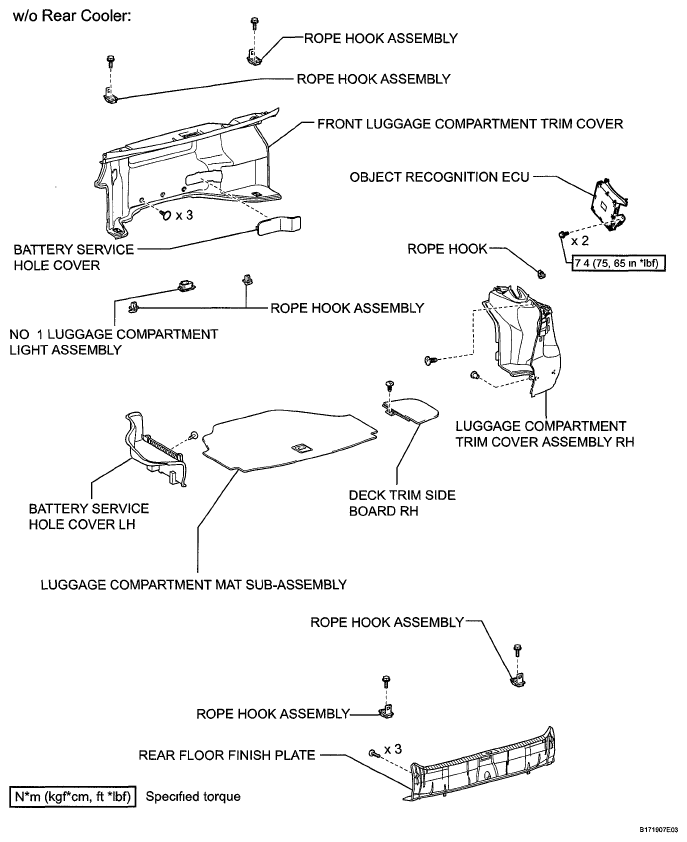

Fig 1: Object Recognition ECU Replacement Components With Torque Specifications (1 Of 2)
G05776073Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

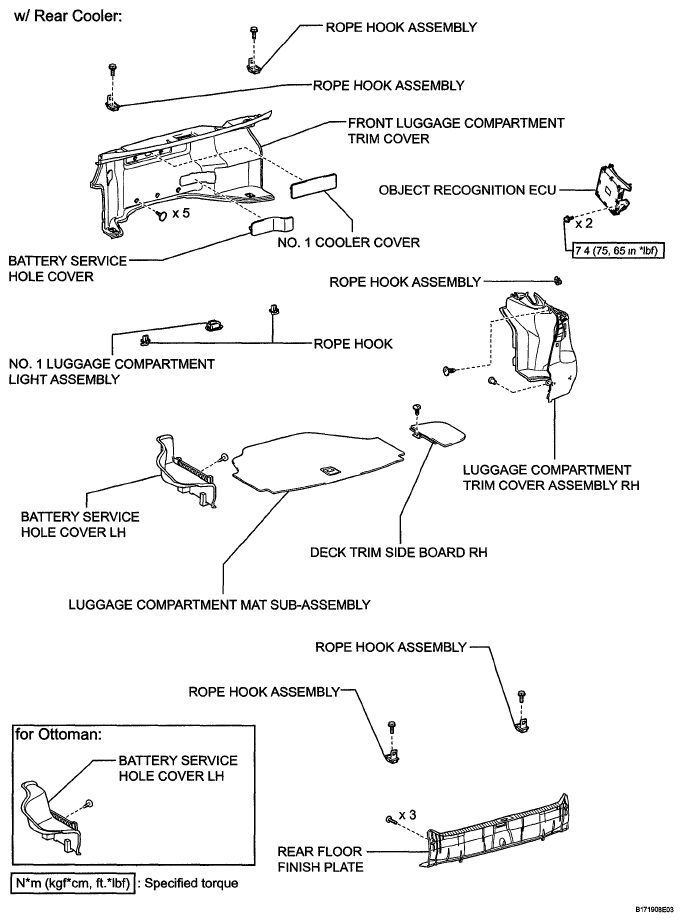

Fig 2: Object Recognition ECU Replacement Components With Torque Specifications (2 Of 2)
G05776074Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
