Refrigerant Line: Components

Fig 1: Refrigerant Line Replacement Components With Torque Specifications (1 Of 2)
G04950511Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

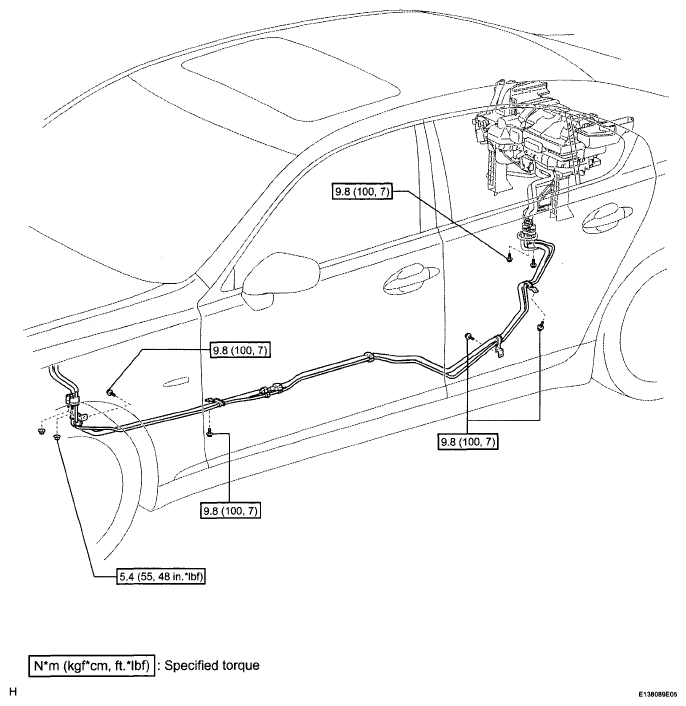

Fig 2: Refrigerant Line Replacement Components With Torque Specifications (2 Of 2)
G05851775Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
