How To Determine Bolt Strength

Bolt Type

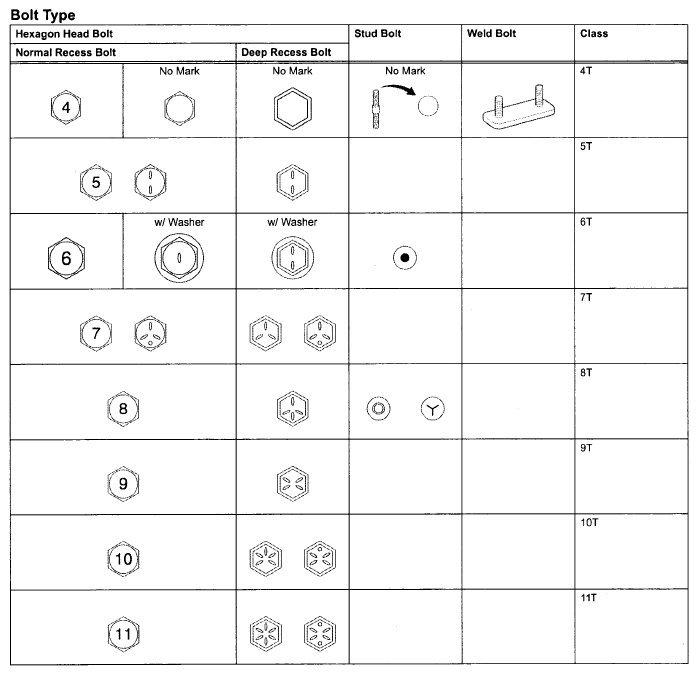

Fig 1: Standard Bolt Reference Chart
G05846848Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
