Parts Location

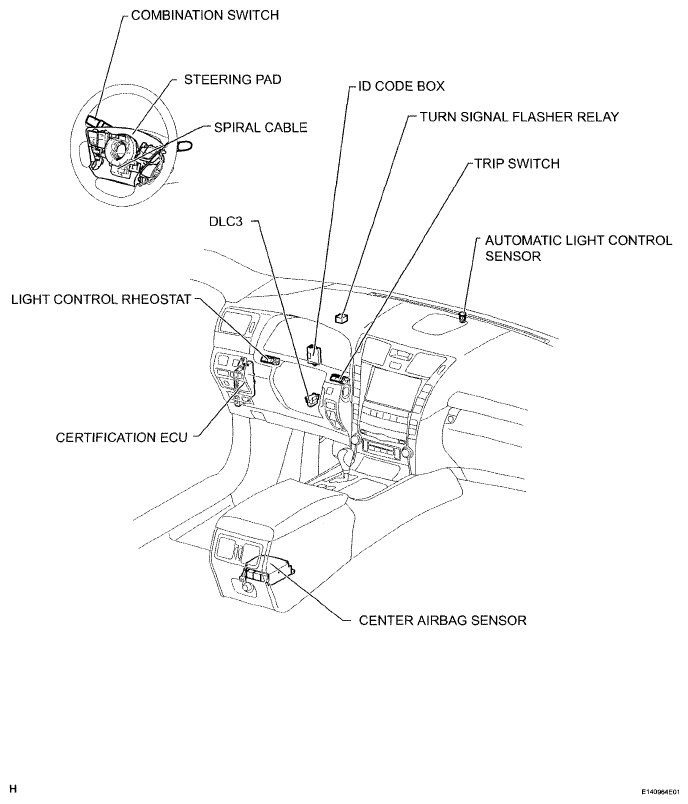

Fig 1: Identifying Meter/Gauge System Parts Location (1 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

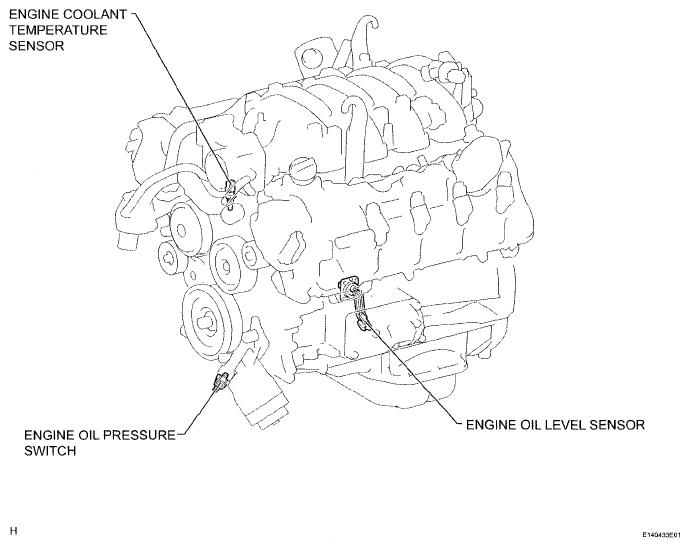

Fig 2: Identifying Meter/Gauge System Parts Location (2 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

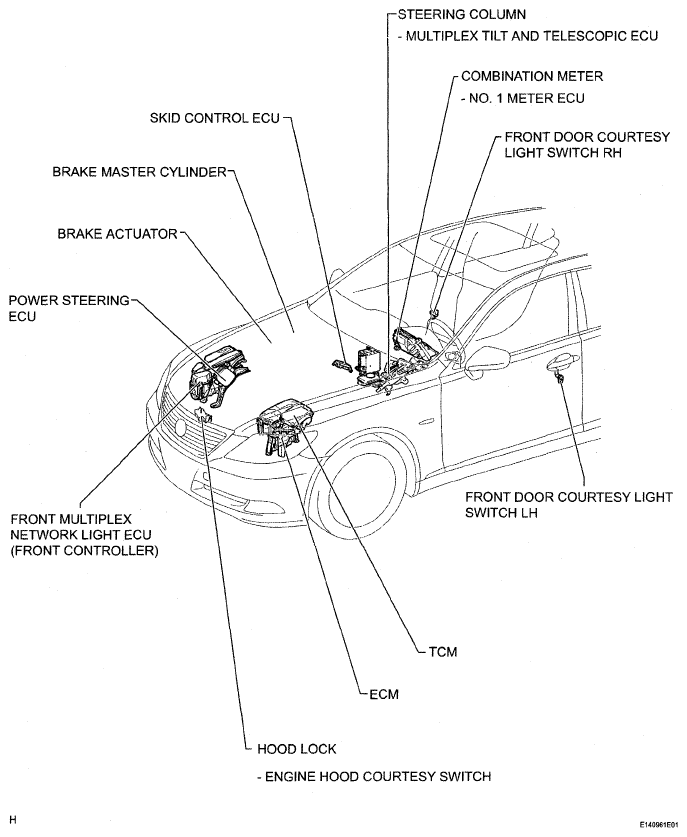

Fig 3: Identifying Meter/Gauge System Parts Location (3 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

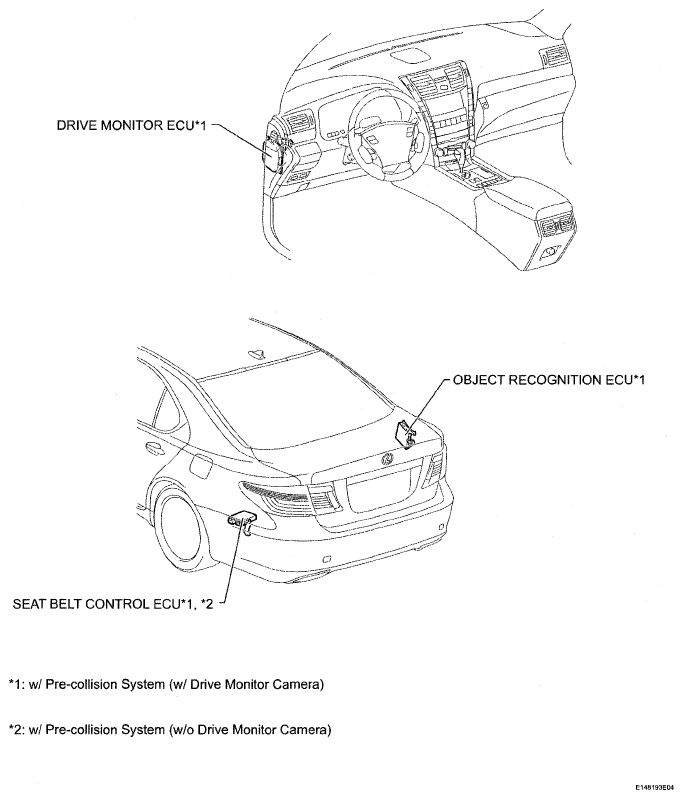

Fig 4: Identifying Meter/Gauge System Parts Location (4 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

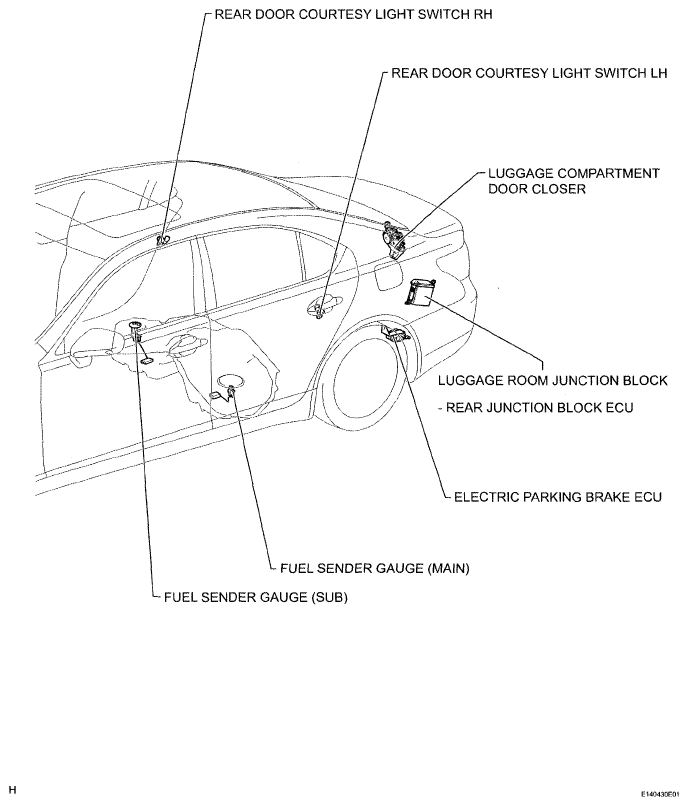

Fig 5: Identifying Meter/Gauge System Parts Location (5 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

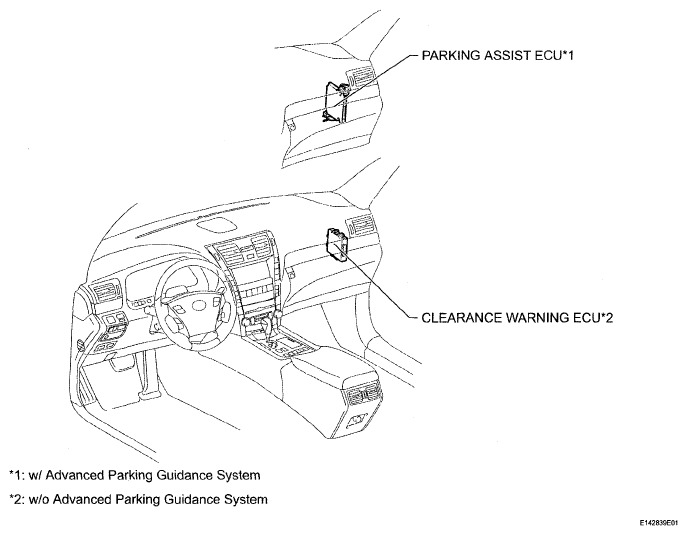

Fig 6: Identifying Meter/Gauge System Parts Location (6 Of 8)

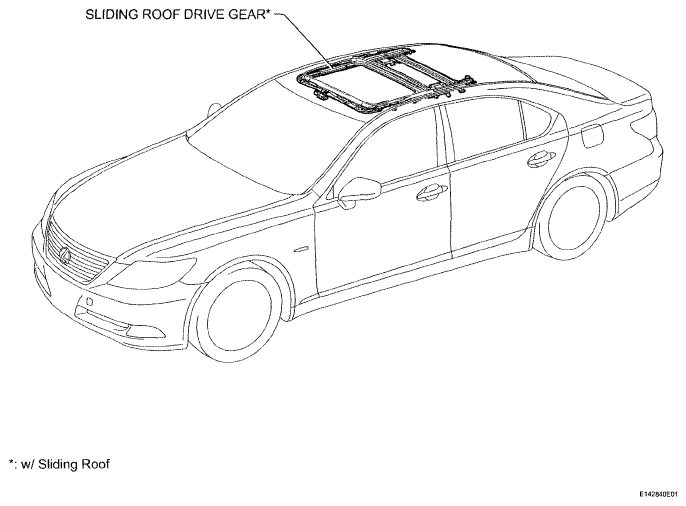

Fig 7: Identifying Meter/Gauge System Parts Location (7 Of 8)

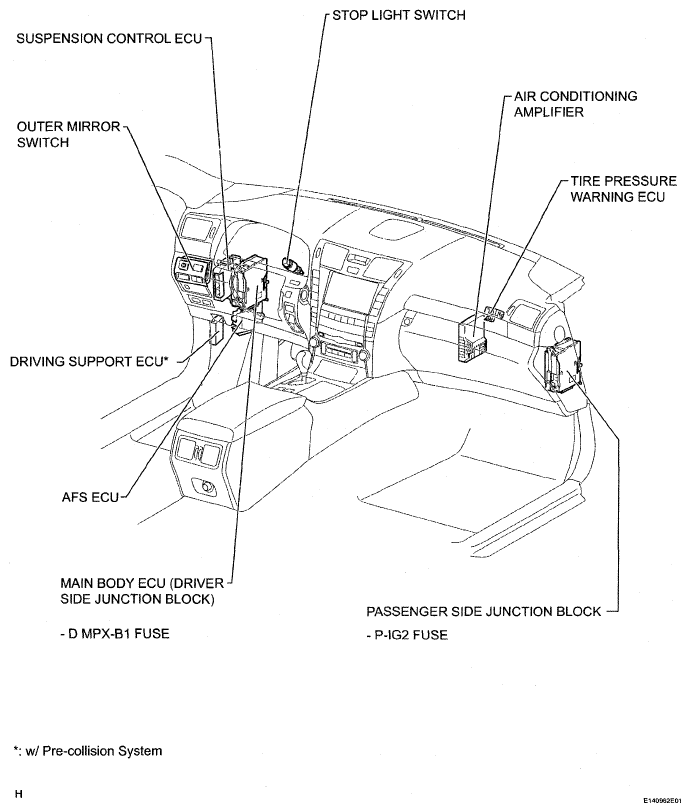

Fig 8: Identifying Meter/Gauge System Parts Location (8 Of 8)
