Front Passenger Side Power Window Does Not Operate With Front Passenger Side Power Window Switch: Wiring Diagram

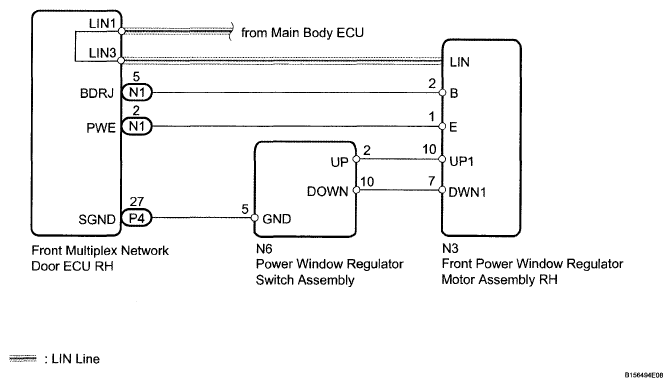

Fig 1: Identifying Front Power Window Regulator Motor Assembly - Wiring Diagram
G05853297Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
