Parts Location

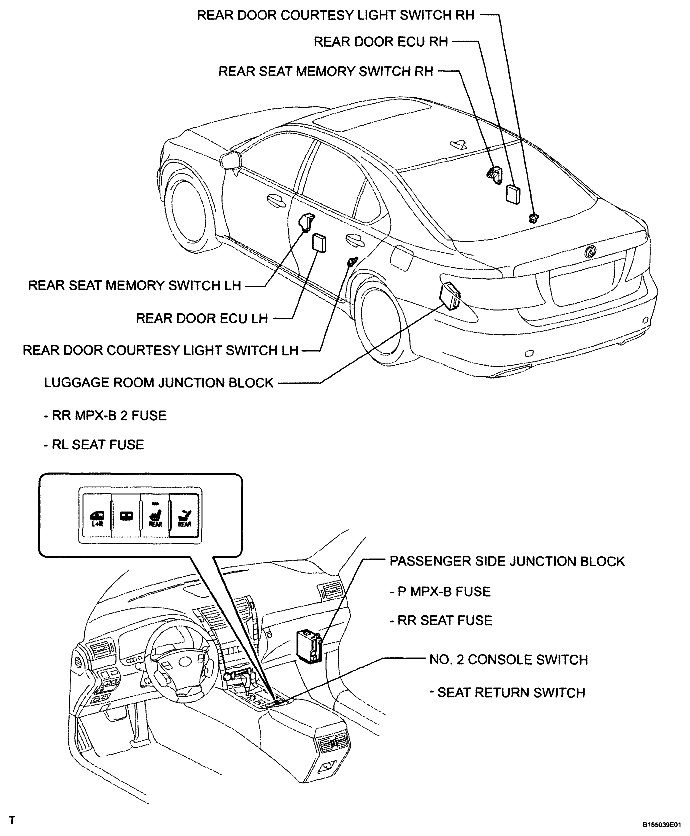

Fig 1: Identifying Rear Power Seat Control System Parts Location
G04952498Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

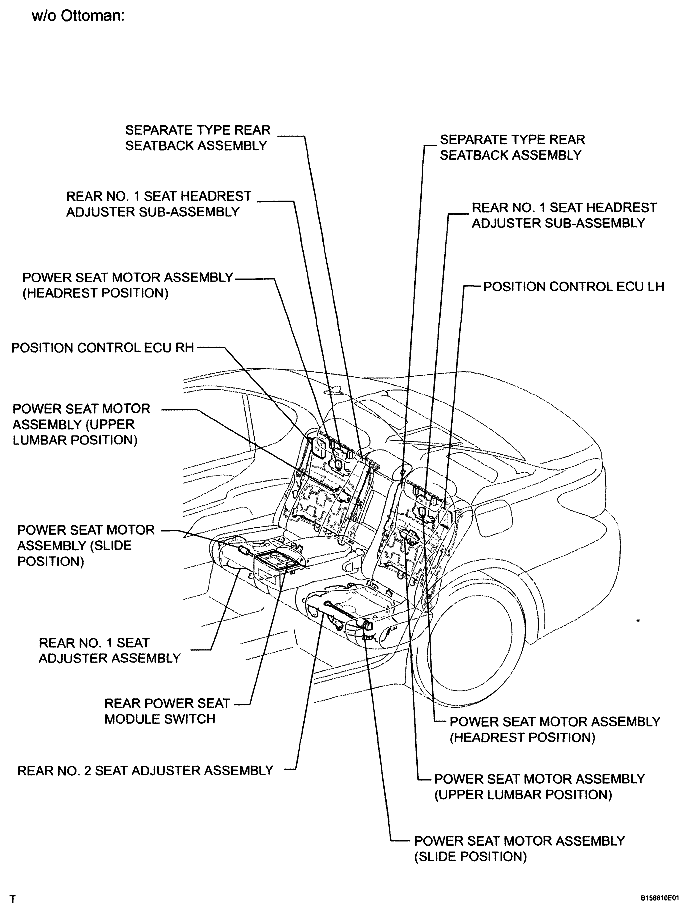

Fig 2: Identifying Rear Power Seat Control System Parts Location (W/O Ottoman)
G04952499Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

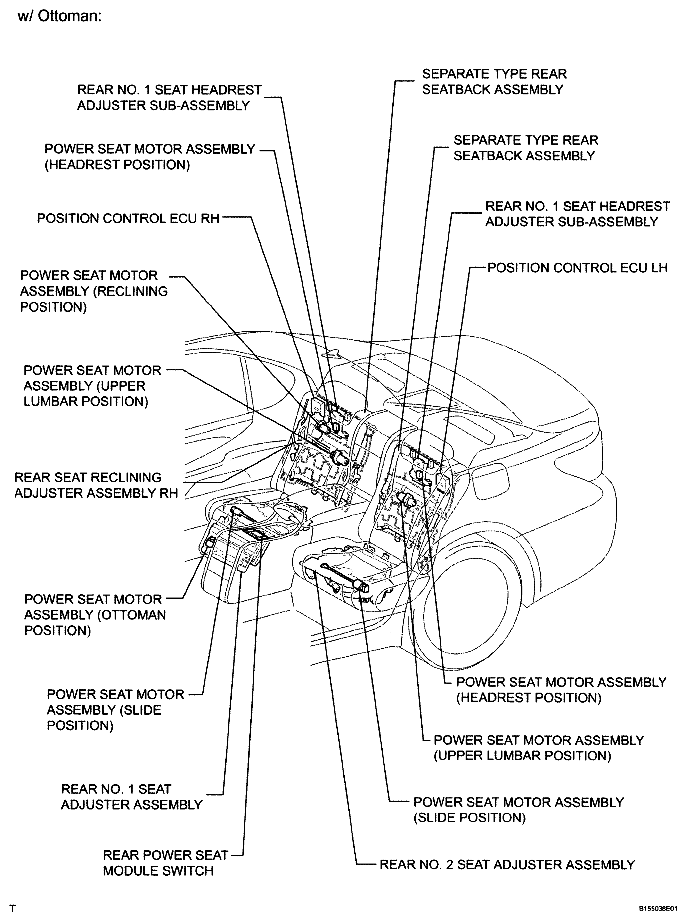

Fig 3: Identifying Rear Power Seat Control System Parts Location (W/ Ottoman)
G04952500Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
